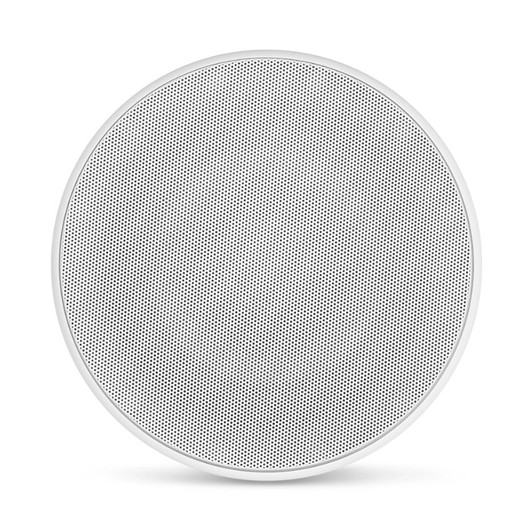

JL Audio M6 8in Subwoofer with White Luxe Grille Infinite Baffle
93719
Model: M6-8IB-L-GwGw-4M6 8-inch Marine Subwoofer for Infinite-Baffle Use (200 W, 4 ohms) - White Trim Ring, White Luxe Grille
With appropriate system setup, the addition of a subwoofer frees your smaller main speakers from the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
M6 Luxe subwoofers are outfitted with a low-profile mounting bezel and a fine mesh grille for minimal protrusion into cabin space. The result is a clean, visual appearance complementary of the finest marine vessel surroundings.
Engineered to operate without a dedicated enclosure, M6 infinite-baffle woofers feature a DMA-optimized, long excursion design and rugged suspension systems to generate smooth, powerful bass that will transform your boat’s audio system.
The M6-8IB is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l). If you prefer to use a dedicated enclosure, refer to one of the suggested designs located in the Specifications section for optimum performance.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Sold individually.
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| General Specifications | |
| Continuous Power Handling (RMS) | 200 W |
| Nominal Impedance (Znom) | 4 ohms |
| Physical Specifications | |
| Nominal Diameter | 8.0 in / 200 mm |
| Overall Diameter | 10.25 in / 260 mm |
| Bolt Hole Circle Diameter | 9.27 in / 235 mm |
| Frontal Grille Protrusion | 0.48 in / 12 mm |
| Mounting Hole Diameter | 8.625 in / 219 mm |
| Mounting Depth | 6.30 in / 160 mm |
| Driver Displacement | 0.073 cu ft / 2.07 L |
| Net Weight | 8.70 lb / 3.90 kg |
| Parameters | |
| Free Air Resonance (Fs) | 54.92 Hz |
| Electrical "Q" (Qes) | 0.852 |
| Mechanical "Q" (Qms) | 10.314 |
| Total Speaker "Q" (Qts) | 0.787 |
| Equivalent Compliance (Vas) | 0.54 cu ft / 15.29 L |
| One-Way Linear Excursion (Xmax)* | 0.53 in / 14 mm |
| Reference Efficiency (no) | 0.28% |
| Efficiency (1 W / 1 m)** | 86.8 dB SPL |
| Effective Piston Area (Sd) | 35.15 sq in / 0.0227 sq m |
| DC Resistance (Re) | 2.993 ohms |
| * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. | |
| ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder". | |
