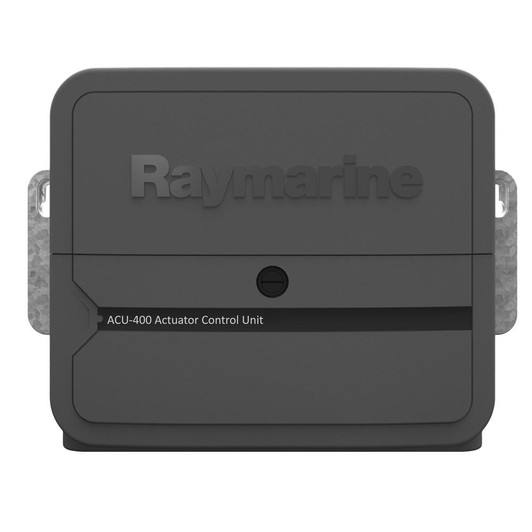

Raymarine ACU-400 Actuator Control Unit

$1,954.11
Share

Ships Within 1-2 Business Days

Free Shipping On Orders Over $500

Options

$1,954.11
Or

WARNING ⚠️

You must be 18 or older to purchase shotgun or rifle ammunition and 21 or older to purchase handgun ammunition and firearms. Please reference our requirements for ammunition orders to "restricted" states HERE.  Always make sure you use the correct ammunition for your firearms. Ammo cannot be shipped to a PO Box. Please reference state & local laws before making a firearm or ammunition purchase.

Purchasing a Firearm? Click HERE to see our firearm purchasing guide.

Info

SKU:RAYE70100 ,UPC:

SKU: RAYE70100

UPC: 723193768921

MPN: E70100

Info

SKU:
RAYE70100
UPC:
723193768921
MPN:
E70100

Description

Raymarine Evolution ACU Specifications
Model  ACU-100   ACU-200   ACU-300   ACU-400
  E70098 E70099 E70139 E70100

Drive Current Output  Maximum continuous

7 A at supply voltage

 Maximum continuous 15 A at supply voltage Maximum continuous 5 A

at supply voltage

 Maximum continuous

30 A at supply voltage
Drive Clutch Output  No clutch connection Up to 2.0 A continuous, selectable between 12 /24 V No clutch connection
  • Up to 4 A continuous at 12 V on 12 V systems,
  • Up to 4 A continuous at 24 V on 24 V systems,
  • Up to 4 A continuous at 12 V on 24 V systems
Connections
  • Rudder reference sensor
  • Power
  • Drive motor
  • Ground

  • Rudder reference sensor
  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • Ground

  • Rudder reference sensor
  • Sleep switch
  • Power
  • Solenoid drive out / return
  • Ground

  • Rudder reference sensor
  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • 723193767962 Ground
  • Digital Input / Output (DIO)
Nominal supply voltage

12 V

12 V or 24 V
Operating voltage range

10.8 V to 15.6 V dc

10.8 V to 31.2 V dc
Power consumption (standby) - main power supply

300 mA (12V)

300 mA (12/24 V)
Power consumption (standby) - SeaTalkng power supply

No power supply to SeaTalkng&nbs p;

20 mA (12V)
SeaTalkng LEN

(Load Equivalency Number)

1
SeaTalkng Power out

No power supply to SeaTalkng

3 A at 12 V (fuse protected at 3 A)
Data connections

SeaTalkng
Installation environment

Operating temperature: -20°C to +55°C (-4°F to +131°F)

Storage temperature: -30°C to +70°C (-22°F to +158°F)

Relative humidity: max 93%
Waterproof rating

Connector panel: IPX2

Drive electronics: IPX6

Drip resistant
Dimensions

(W x H x D)

180 mm x 140 mm x

52 mm

(7.1 in x 5.5 in x 2.0 in)

285 mm x 211.5 mm x 64.5 mm

(11.2 in x 8.3 in x 2.5 in)
Weight

0.6 kg (1.32 lbs)

2.2kg (4.84 lbs)
Conformance

Europe: 2004/108/EC

Australia and New Zealand: C-Tick, Compliance Level 2
