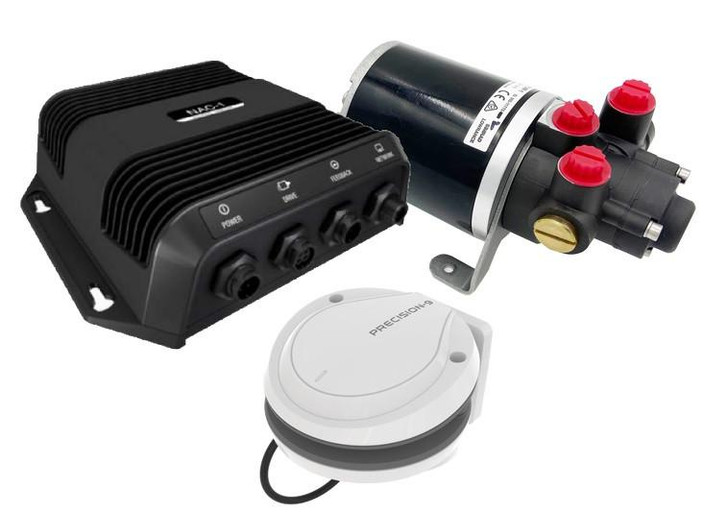

Simrad NAC-1 Outboard Pilot Hydraulic Pack, MKII PUMP-1 Includes Precision-9

$1,829.00
Share

Options

$1,829.00
Or
Ships 1–2 Business Days Fast processing & tracking
Free Shipping $500+ Best value for bulk orders
Easy 60-Day Returns Some exclusions apply

Info

SKU:SIM00015951001 ,UPC:

SKU: SIM00015951001

UPC: 9420064128099

MPN: 000-15951-001

Info

SKU:
SIM00015951001
UPC:
9420064128099
MPN:
000-15951-001

Description

Simrad Outboard Pilot Hydraulic Pack with MKII Pump-1 AND Precision-9 Heading Sensor

Model: 000-15951-001
  • Easy to Install
  • Dash-mount button for one-touch Auto/Standby activation
  • Steer to Heading, Course or Route
  • Automatic Turn Patters
  • NAC-1 Plug & Socket connectors — no screw terminals or wire stripping necessary
  • High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII)
  • Add a second Helm station to a boat using the MFD Power steer commands — no need for additional hydraulics + steering wheel.

Outboard Pilot is an MFD Autopilot add-on system designed for boats up to 30ft with single outboard motor. System packs contain everything you need to fit an Autopilot to Hydraulic or Cable steer outboard motors.

Specifications
Supply Voltag12vDC
Max Drive output8A continuous, 16 Amp peak
Interfaces
Network1xMicroC
FeedbackVariable voltage from HELM -1 drive unit
Drive outputTo PUMP-1 or HELM-1

What's in the Box:
  • NAC-1 AUTOPILOT COMPUTER
  • PUMP-1 - 12V 0.8L For outboard pilot
  • Autopilot pump fitting kit for ORB steering system
  • Auto-Stby Button - Metal
  • N2KEXT-2RD - 0.61 m (2-ft) NMEA 2000® cable
  • N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable
  • N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable
  • TR-120-KIT - Set of 1 male and 1 female NMEA 2000® terminators
  • MICRO-C Power cable only
  • Low loss NMEA2000 4-way joiner
  • Precision-9 Compass
