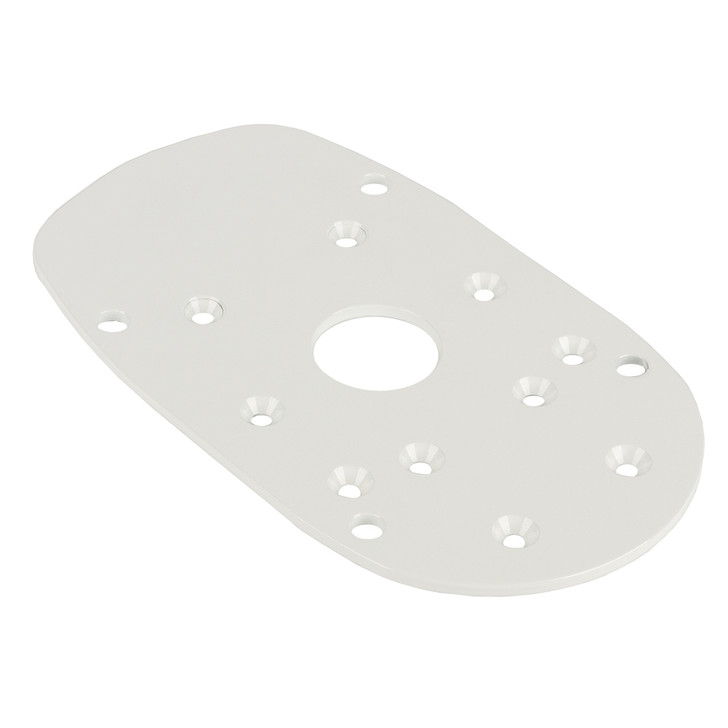

Edson Vision Series Mounting Plate - Raymarine 4' Open Array

The Edson Vision Series Mounting Plate for Raymarine 4' Open Array radar is a precision marine electronics mounting solution designed to integrate Raymarine's Quantum, Quantum 2, RD418D, RD424D, RD418HD, and RD424HD radar systems into Edson's modular Vision Series mounting framework. This mounting plate serves as the critical interface between your open array radar antenna and the deck or mast structure, engineered to handle the weight, vibration, and corrosive salt-air environment of offshore and coastal boating.

Measuring 16 inches square with a compact 1-inch profile and weighing 2.4 lbs, the mounting plate provides a stable platform that distributes radar antenna loads while maintaining the low-profile aesthetic many boat owners prefer on flush-mounted installations. The plate is designed specifically for open array configurations, where antenna orientation and precise leveling directly affect radar image clarity and target detection range. Edson's Vision Series system requires this mounting plate as a foundation component; the base mounts are sold separately, allowing you to configure a mounting solution tailored to your specific vessel layout and radar model.

This mounting plate is essential for serious fishermen, cruisers, and commercial operators running Raymarine 4-foot open array radar. Whether you're upgrading from older radar systems, replacing damaged mounting hardware, or building out a complete Vision Series installation, this plate ensures your radar antenna maintains proper alignment and structural integrity in rough seas and challenging weather. The modular Vision Series design means you can upgrade or reconfigure your entire mast-mounted electronics platform without complete reinstallation.

For boaters standardizing on Edson Vision Series infrastructure, this Raymarine 4' mounting plate is the foundation of a professional-grade radar mounting system. Confirm compatibility with your specific Raymarine open array model (Quantum series, RD418/RD424 variants) before ordering, as this plate is engineered exclusively for 4-foot open array antennas and is not compatible with smaller or solid-state radar systems.
