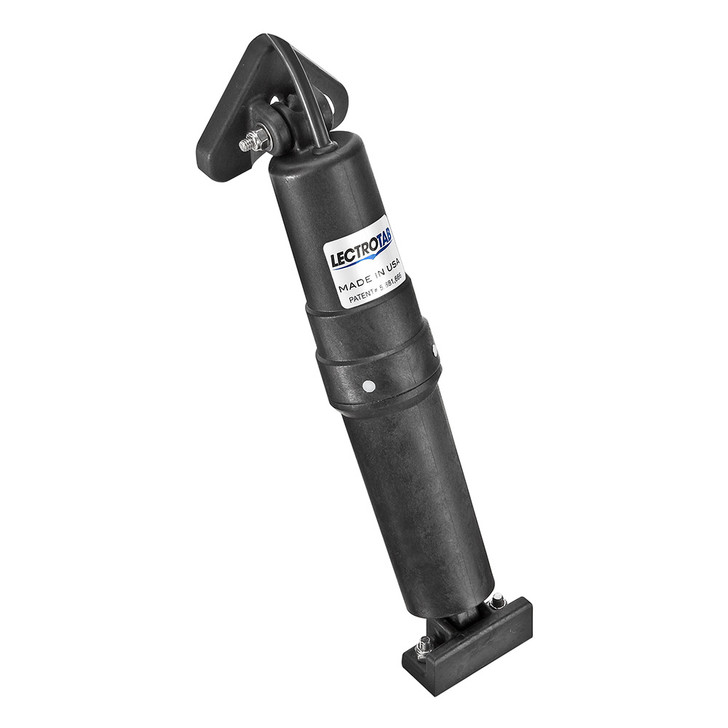

Lectrotab 12 V Trim Tab Actuator - 6' Cable

Add to Cart

Options

$191.36
MSRP: $254.00
You save $62.64
Or

Info

SKU:CW96253 ,UPC:

Info

SKU:
CW96253
UPC:
850046155000
MPN:
A-BK

Description

12 V Trim Tab Actuator - 6' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.

No components need to be installed inside the boat.  Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates a transom mounting bracket.

Features:

  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes internal pressure equalization system
  • Upgrades to most popular hydraulic and electromechanical systems
  • Internal brake system prevents unwanted tab movement when under way or backing down
  • Quiet operation
  • All actuators fully load tested to push 1000 lbs of force
  • Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

  • Actuator DC Voltage - 12 V
  • Actuator Stroke Length - 2.25" (57 mm)
  • Actuator Cable Length  - 6' (1.8 M)
  • Actuator Vertical Height - 11.875" (302 mm)
  • Upper Mounting Bracket - Standard
  • Lower Mounting Bracket - Standard

*Sold as an Individual


Manufacturer : Lectrotab
Manufacturer Part No : A-BK
UPC : 850046155000
