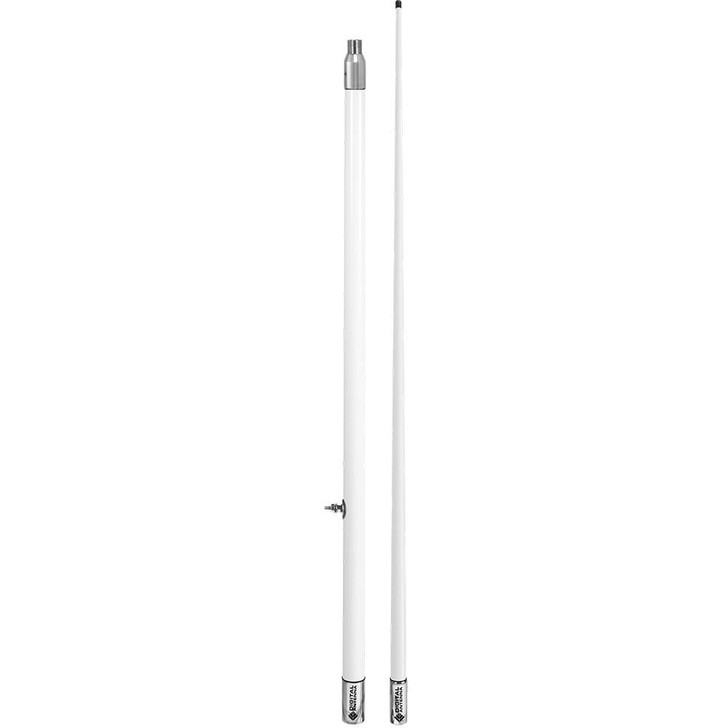

Digital Antenna 544-SSW-S 16' Single Side Band Antenna

544-SSW-S 16' Single Side Band Antenna

When VHF range isn't enough, step up to Digital Antenna’s 16' SSB (Single Side Band) antenna - trusted by serious offshore operators for long-range, high-frequency communication. Built tough for offshore adventures, this hand-tuned, American-made antenna combines unbeatable performance, durability, and a sleek look. (Tuner and side support required.)

Features:

• Powerful Brass radiators maximize signal strength and conductivity
• Soldered connections enhance durability, electrical efficiency, and long-term reliability
• Internal Foam insulators stabilize elements and reduce vibration
• High-gloss urethane finish ensures UV resistance and durability
• 316 Stainless Steel Ferrules offer corrosion resistance for harsh environments
• Hand-built, tested, and tuned in the USA for optimal performance
• Mounts to standard 1"-14 threaded bases for universal compatibility
• Backed by a 5-year warranty for long-term reliability

Specifications:

• Radiation Pattern: Omni-Directional
• VSWR: <1.5:1 = .5 - 30 MHz with Tuner
• Max Input Power: 1000 watts
• Dimensions:  8’ x 1.5” OD (bottom section) 8’ x 1” tapered OD (top section)
• Exterior Finish: White, UV stable polyurethane coating
• Ferrules: 316 Stainless Steel
• RF Termination: 1/4”- 20 stainless steel stud
• Wind Rating:  95 mph
• Installation: 1”-14 female threads
• Wire (not included): Use 10-12 AWG high-voltage insulated wire
