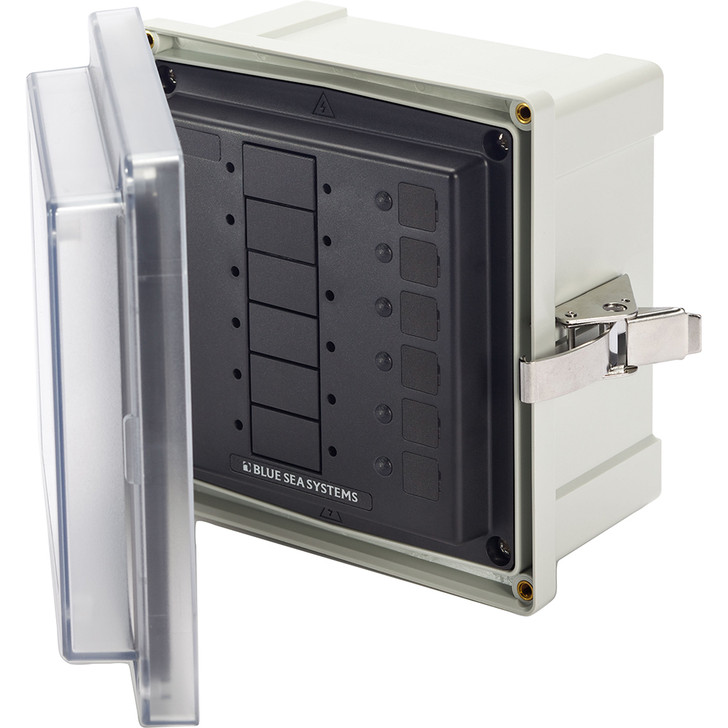

Blue Sea 3113 - SMS Panel Enclosure w/6 Blank Circuits

3113 - SMS Panel Enclosure with 6 Blank Circuits

The 3113 panel enclosure is built for main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers

Technical Specifications:

• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC)

In the Box:

• 3123 Enclosure
• Mounting hardware
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
