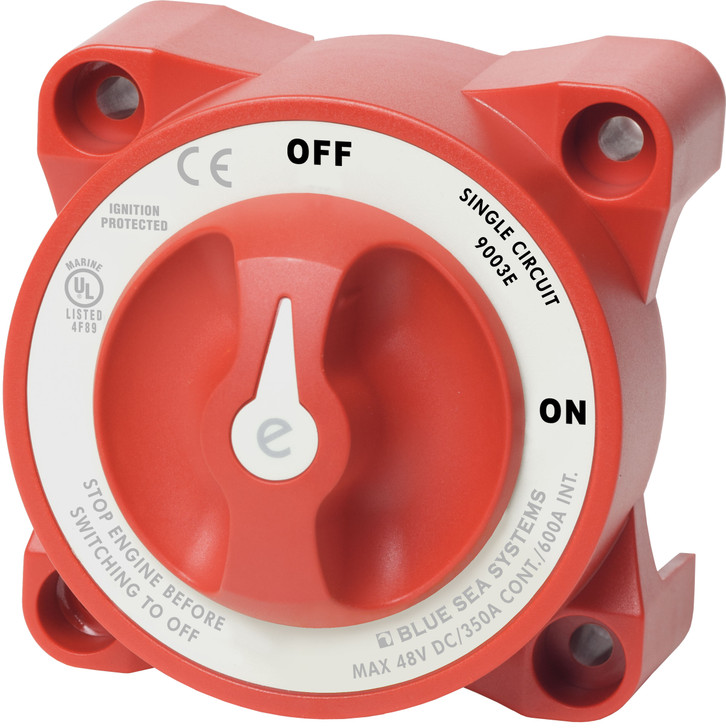

Blue Sea E-Series Battery Switch On-Off

$38.49
Share

Options

$38.49
Or
Ships 1–2 Business Days Fast processing & tracking
Free Shipping $500+ Best value for bulk orders
Easy 60-Day Returns Some exclusions apply

Info

SKU:BSS9003E ,UPC:

SKU: BSS9003E

UPC: 632085900359

MPN: 9003e-BSS

Info

SKU:
BSS9003E
UPC:
632085900359
MPN:
9003e-BSS

Description

Blue Sea Systems e-Series On Off Battery Switch

Model: 9003E-BSS
  • 350 Amps continuous rating for inboard gasoline or diesel engines.
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 3/8" (M10) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns
  • Case design allows surface or rear panel mounting
  • Tactile indicator conveys knob position by feel
  • Waterproof — rated IP66 from water projected in powerful jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Make-before-break contact design allows switching without power interruption

Switches a single battery to a single load group

Specifications
Switch TypeSingle Circuit ON-OFF
ColorRed
Switch Positions2
Battery CombineNo
Alternator Field DisconnectNo
Maximum Voltage48V DC
Terminal Stud Torque140 in-lb (15.82 Nm)
Continuous Rating350A
Intermittent Rating600A (5 min)
Cranking Rating 30 sec1200A per circuit
Battery Inputs1
Cable Clearance For 4/0 AWG Cables1.10in (27.94 mm)
Cable Size to Meet Ratings4/0 AWG (120mm )
Mounting HolesAccept 1/4" (M6) Screw
Stud MaterialTinned Copper
Terminal Stud Size3/8" - 16 (M10)
