Blue Sea Panel Enclosure 120v AC 30A ELCI Main Surface Mount System

$513.42
Share

Ships Within 1-2 Business Days

Free Shipping On Orders Over $500

Options

$513.42
Or

WARNING ⚠️

You must be 18 or older to purchase shotgun or rifle ammunition and 21 or older to purchase handgun ammunition and firearms. Please reference our requirements for ammunition orders to "restricted" states HERE.  Always make sure you use the correct ammunition for your firearms. Ammo cannot be shipped to a PO Box. Please reference state & local laws before making a firearm or ammunition purchase.

Purchasing a Firearm? Click HERE to see our firearm purchasing guide.

Info

SKU:BSS3116 ,UPC:

SKU: BSS3116

UPC: 632085031169

MPN: 3116-BSS

Info

SKU:
BSS3116
UPC:
632085031169
MPN:
3116-BSS

Description

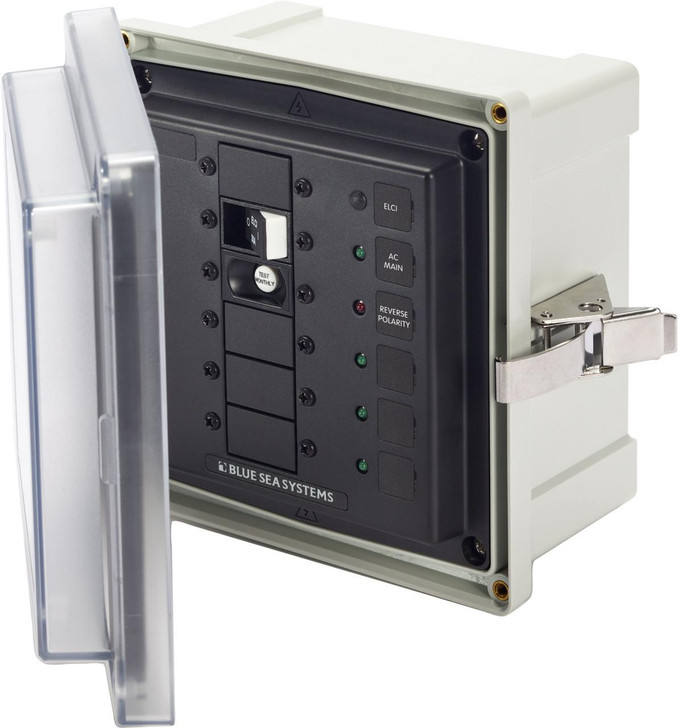

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 blank circuit positions

Model: 3116-BSS
  • Includes one 120V AC / 30A ELCI Main and three blank positions
  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate mounting box
  • Glass filled polycarbonate mounting box
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications
Minimum Operating Temperature-40° C
Maximum Operating Temperature85° C
Cover Screws and Hardware10-32 Stainless Steel
Enclosure Size6.0" x 6.0" x 4.0"
Exterior Overall Dimensions7.6" x 7.4" x 4.7"
Mounting Hardware1/4" Diameter, #12 (6 mm)

What's in the Box:
  • SMS Enclosure
  • # 3124 Gland for #14-10 wire x 2
  • #3125 Gland for #14-10(3 Conductor) wire x 3
  • #4206 AC Label Kit
  • AC Main Label
  • ELCI Label
  • 310210 ELCI Breaker 120 VAC 30A
  • # 8034 LED - 120V AC Green (ON Indicating) x 4
  • # 8066 LED - 120V AC Red (Reverse Polarity Indicating)
