SKU: BSS4309
UPC: 632085043094
MPN: 4309-BSS

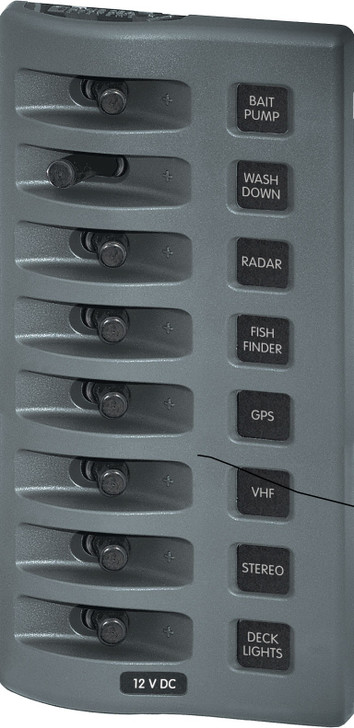

Blue Sea Systems WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
Model: 4309-BSSMany switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck® Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won’t deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck® Switch Panel has all the rugged features of the proven WeatherDeck® Panel family however does not have the added cost of backlighting and circuit protection.
Specifications| Weatherproof | Waterproof |
| Positions | 68 |
| Nominal Voltage | 12V DC 24V DC |
| Circuit Protection | None |
| Maximum Amperage | 15A @ 12V DC (per circuit) |
| Panel Cumulative Rating | 45A |
| Height | 7.70in (195.58 mm) |
| Width | 3.88in (98.55 mm) |
| Depth | 2.50in (63.5 mm) |
| Material | Reinforced Polycarbonate |
