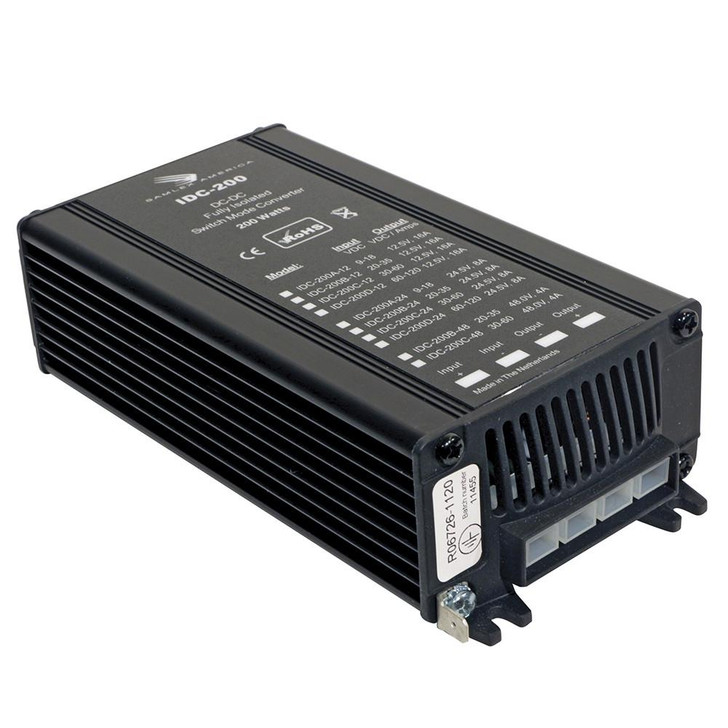

Samlex 200W Fully Isolated DC-DC Converter - 8A - 20-35V Input - 24V Output

Add to Cart

Options

$150.64
MSRP: $235.80
You save $85.16

Info

SKU:CW67262 ,UPC:

Info

SKU:
CW67262
UPC:
622988067273
MPN:
IDC-200B-24

Description

200W Fully Isolated DC-DC Converter - 8A - 20-35V Input - 24V Output

IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-200B-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 8 Amps (at 35 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-200B-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Features:

  • Fully Isolated
  • Short Circuit Protected
  • Current Limited

Specifications:

  • Input: 20-35 VDC
  • Output: 24 VDC
  • Watts: 200
  • Amps: 8 Amps
  • Weight: 1.5 (lbs)
  • Weight: 0.68 (kg)
  • Dimensions: 6.9 x 3.5 x 1.9 (in)
  • Dimensions: 17.5 x 8.8 x 5.0 (cm)
  • Safety: CE
  • Warranty: 2 Year Limited

Applications:

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Manufacturer : Samlex America
Manufacturer Part No : IDC-200B-24
UPC : 622988067273
