SKU: XAN886005024
MPN: 886-0050-24

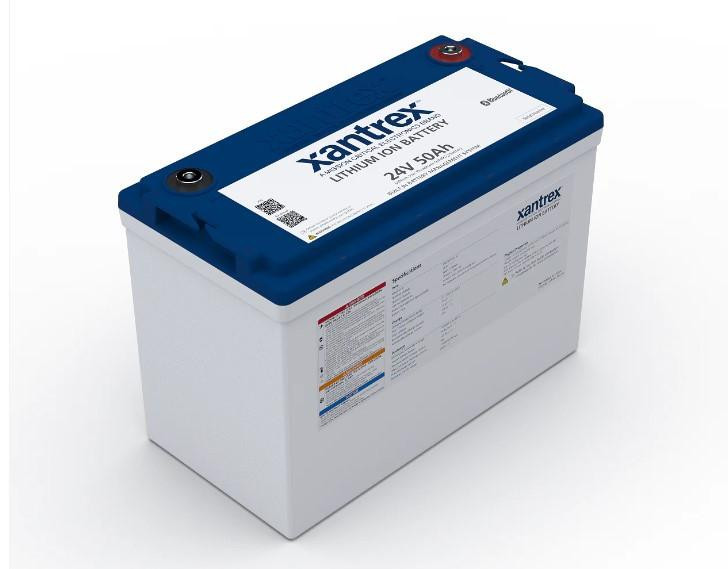

Xantrex 50AH 24v Lithium Battery
Model: 886-0050-24High cycle Lithium-Ion (LiFePO4) battery designed to fit into existing lead acid Group 31 batteries scenarios such as powering trolling motors for fishing boats.
The Xantrex Lithium-Ion Iron Phosphate (LiFePO4) battery used UL1642 certified cells. Equipped with redundant safety features, it is the safest in the market today. Specifically designed to withstand the harsh operating environments of mobile and marine applications, the battery lasts up to 4,000 cycles compared to a traditional lead acid or AGM battery, which typically lasts 400-500 cycles. It offers exceptional power density and is also available with a heating blanket option if the installation is outside the main cabin.
Sleep Mode: Xantrex Lithium-Ion Iron Phosphate batteries self-discharge at 12.5% State of Charge (SOC) per month during regular use. After 10 consecutive days of inactivity, the battery switches to a low power mode, reducing the self-discharge rate to 3% SOC per month. Any charge or discharge activity will reactivate the battery, resetting the 10-day counter. This extends the battery life during periods of non-use.
Specifications| Battery Voltage | 24V |
| Nominal True Capacity | 50Ah |
| Nominal Voltage | 25.6V |
| Nominal Watt Hours | 1280Wh |
| Charge Voltage | 29.2V |
| Recommended Float Charge Voltage | 27.6V |
| Max Discharge Current | 50A |
| Pulse Discharge Current | Less Than 170W for 3 seconds |
| Discharge Cut-off Voltage | 20V |
| Cycle Life to 80 percent Health | 4000 Cycles |
| Weight | 27.5lb (12.5kg) |
| IP Rating | IP54 |
| Battery Terminals | M8 |
| Mounting Orientation | Table mount only |
| Dimensions | 13.0" x 6.8" x 9.4" (330mm x 173mm x 240mm) |
