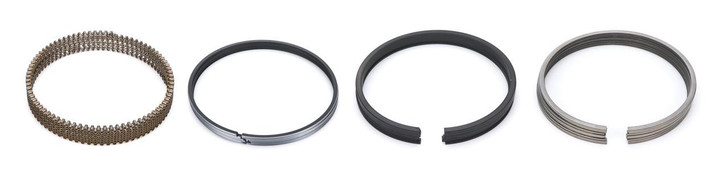

Perf. Piston Ring Set V8 4.090 Bore 1.5x1.5x3.0

The Performance Piston Ring Set V8 4.090 Bore 1.5x1.5x3.0 is an essential upgrade for serious engine builders and performance enthusiasts looking to maximize compression, oil control, and ring seal in high-output V8 applications. Designed for large-displacement V8 blocks with a 4.090-inch bore diameter, this NPR ring set addresses the critical need for precision ring geometry in stroker builds, boosted engines, and competition platforms where factory rings fall short. Whether you're assembling a street performance engine, preparing for track duty, or rebuilding after a significant power upgrade, quality piston rings determine the difference between marginal gains and reliable, sustained performance.

This ring set features a 1.5x1.5x3.0mm stack configuration—a modern compression and oil control profile optimized for contemporary V8 engine designs. The 1.5mm top and second ring thicknesses provide superior pressure loading and blow-by control, while the 3.0mm oil ring scrapes excess lubricant efficiently to prevent consumption and ring stacking. NPR Piston Rings are engineered with hardened steel construction and precision-wound designs that maintain consistent radial tension across the ring face, ensuring rapid seating, minimal leakage, and extended service life. The 4.090-inch bore specification demands exact concentricity and gap clearance—this set meets OEM tolerances and is compatible with OEM and quality aftermarket pistons in that bore range.

Builders working on 427, 454, and other large-displacement Gen I, Gen II, or LS-based V8 platforms will find this ring set indispensable for naturally aspirated and supercharged builds. Installation requires proper ring groove clearance checking and end-gap filing to your specific bore and piston combination—ring gaps should typically run 0.015–0.025 inches for compression rings depending on fuel type and boost level. Pair this set with quality pistons, a properly finished bore, and correct installation technique to achieve optimal combustion pressure retention, reduced oil consumption, and reliable horsepower delivery in your high-performance V8 engine.
