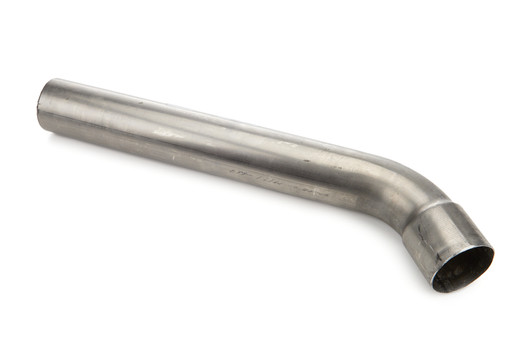

Elbow 2-1/4in Dia 52 Deg Right

The Elbow 2-1/4in Dia 52 Deg Right from Schoenfeld is a precision mandrel-bent exhaust pipe elbow engineered for high-performance engine builders and custom automotive fabricators. This component is essential for routing exhaust gases through tight engine compartments or around critical drivetrain components in modified vehicles. Whether you're building a street machine, race car, or restoring a classic with a modern powerplant, this right-hand elbow provides the precise bend geometry needed to maintain optimal exhaust flow while fitting confined spaces.

Manufactured by Schoenfeld, a trusted leader in performance exhaust systems, this 52-degree elbow features a 2-1/4-inch diameter tubing ideal for mid-range displacement engines and naturally aspirated applications. The mandrel-bending process ensures consistent wall thickness throughout the bend, eliminating kinks and flow restrictions that plague cheaper crimped elbows. This design minimizes turbulence and backpressure, allowing exhaust scavenging to work efficiently and supporting reliable power output. The right-hand configuration (designated by the "R" designation) positions the outlet toward the driver's side, a critical detail for proper header or collector alignment.

Fabricators and engine builders commonly use this elbow as part of custom exhaust headers, collector transitions, or downpipe routing in turbocharged and naturally aspirated builds. Its compact footprint—measuring 4.25 x 2.4 x 16.9 inches and weighing just 1.98 lbs—makes it suitable for tight engine bay layouts where off-the-shelf headers won't fit. Compatibility spans most carbureted and fuel-injected V6, V8, and small-block applications using 2-1/4-inch exhaust tubing. Installation requires TIG or MIG welding; ensure proper fitment with your header flange and downstream components before final assembly.
