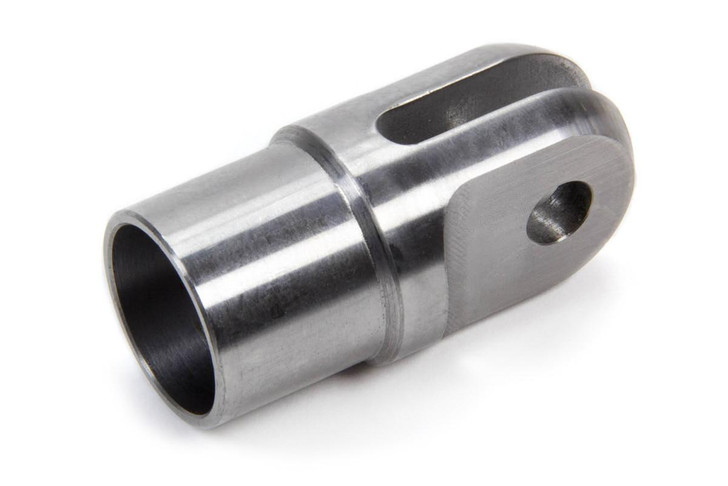

Weld-In Slot Clevis - 1-1/4 x .058 1/4

The Weld-In Slot Clevis 1-1/4 x .058 1/4 from MEZIERE is a precision chromoly tube end designed for welded installation in custom exhaust systems, roll cages, and structural fabrication projects. This clevis-style fitting serves as a connection point where tubing meets chassis or component brackets, offering reliable load distribution in high-vibration and high-temperature environments. Engineers and fabricators rely on weld-on clevises to create permanent, structurally sound joints that maintain alignment and integrity under demanding conditions.

Constructed from chromoly steel in its natural (uncoated) state, the Weld-In Slot Clevis features a 1-1/4 inch tube diameter with a 0.058 inch wall thickness and a 0.260 inch slot width to accommodate standard fastener pins or clevis pins. The 3/8 inch bore provides a secure pivot point for articulated connections or removable pin attachments. Chromoly's superior strength-to-weight ratio and weldability make it the preferred material for performance applications where material fatigue resistance and heat tolerance are critical. The compact overall dimensions (2.85 x 1 x 5.25 inches) ensure this fitting integrates seamlessly into space-constrained designs without compromising structural performance.

Fabricators, motorsport enthusiasts, and industrial welders benefit most from this product when building custom exhaust headers, suspension components, or cage work that demands repeatable, code-compliant connections. Installation requires TIG or MIG welding equipment and proper surface preparation to ensure a clean, penetrating bead around the tube perimeter. The natural chromoly finish accepts welding without special pre-treatment and can be painted or powder-coated post-fabrication for corrosion protection. This single-piece clevis (sold individually) pairs with standard 1/4 inch clevis pins for quick-disconnect capability or remains welded for permanent assembly.
