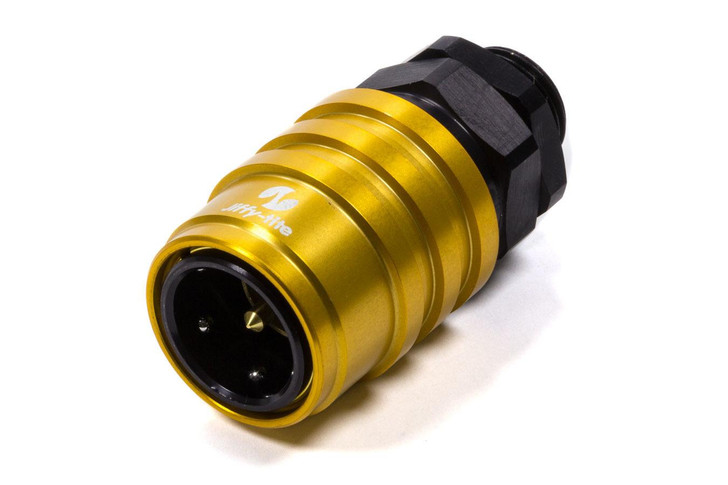

Q/R Male #8 ORB to #8 Socket Valved Gold/Black

The JIFFY-TITE Q/R Male #8 ORB to #8 Socket Valved Gold/Black quick-release adapter is a precision hydraulic coupling designed for high-pressure fluid systems requiring secure, repeatable connections without downtime. This straight-body quick-release connector features an 8 AN male O-ring (ORB) inlet mating to a valved quick-release socket, enabling fast disconnect and reconnect cycles while maintaining system integrity under pressure. The 5000 Series construction delivers the reliability demanded in aerospace, industrial, and mobile hydraulic applications where fluid loss and contamination must be minimized.

Built from aluminum with black and gold anodized finish, this coupling resists corrosion in demanding environments while the FKM (Viton) elastomer seal ensures compatibility with a wide range of hydraulic fluids across temperature ranges typical of field operations. The valved design prevents spillage when disconnected, protecting equipment cleanliness and operator safety during mid-system service. Rated for 5000 PSI operating pressure, the #8 AN sizing integrates into standard high-flow hydraulic hose assemblies common in mobile equipment, machinery, and aerospace test stands. At 0.26 lbs, the compact form factor minimizes weight penalties in weight-sensitive applications.

Technicians and maintenance crews rely on quick-release adapters for equipment servicing, fluid transfers, and modular system configurations where repeated connections demand zero-leak performance. The JIFFY-TITE 51108 addresses applications requiring frequent disconnects without component replacement or fluid waste—critical in closed-loop recycling systems, test benches, and transportable hydraulic setups where operational efficiency directly impacts labor costs and environmental compliance.

This adapter represents the industrial standard for 5000 PSI quick-disconnect technology, trusted across sectors where pressure reliability and seal integrity define system uptime. The O-ring male configuration pairs with receptacle-style mounts, offering flexibility in plumbing configurations for both stationary and mobile installations.
