Raymarine Alpha 9 Performance Display

$2,199.99
Share

Options

$2,199.99
Or
Ships 1–2 Business Days Fast processing & tracking
Free Shipping $500+ Best value for bulk orders
Easy 60-Day Returns Some exclusions apply
Trusted By Over 250,000+ Happy Customers Serving outdoor enthusiasts nationwide

Info

SKU:RAYE70650 ,UPC:

SKU: RAYE70650

UPC: 723193842737

MPN: E70650

Info

SKU:
RAYE70650
UPC:
723193842737
MPN:
E70650

Description

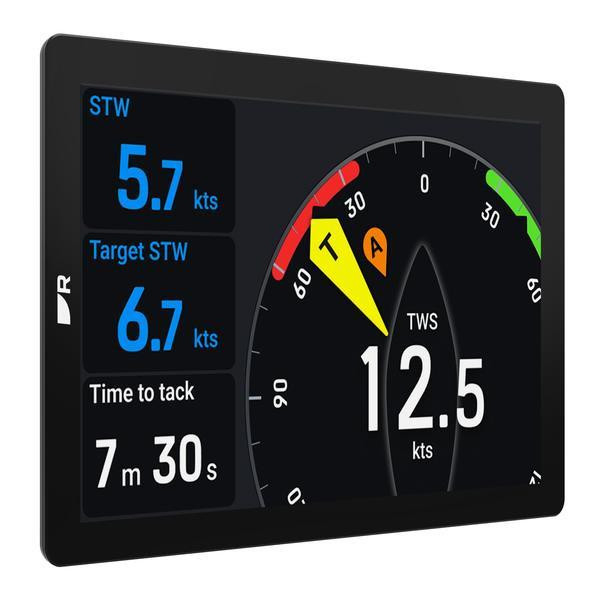

Raymarine Alpha 9 9" Pewrformance Display

Model: E70650
  • Customizable sailing, navigation, and engine instrument displays.
  • SailPoint™ mode provides you with a visual reference of target wind angle, so you achieve your maximum VMG upwind or downwind.
  • Polarized sunglasses-friendly displays with extra wide viewing angles, viewable on the mast or remote location.
  • Tested to the extreme and built with our exclusive HydroTough™ nanocoating that repels water and oils for reliable touchscreen control.
  • Landscape or portrait mounting option.
  • Single power and data cable** for fewer cables running through the deck and mast.
  • Support for daisy-chaining up to 4 displays.
  • Auto-dimming through an integrated ambient light sensor.
  • Lockable touch screen with remote control from Axiom.
  • Designed to network with Axiom chartplotters for all instrument data, transducer data, and performance sailing calculations.

The Alpha series are high-visibility touchscreen displays with fully customizable marine instrument data and graphic displays to help you make smarter sailing decisions. Designed for helm or mast mounting, the Alpha Series is customized and controlled via its touchscreen and controlled remotely from a networked Axiom Chartplotter*.

* The Alpha Performance Display requires a Axiom Chartplotter (on Lighthouse 4.5 software or later) connected on the Raynet network. ** Power and data cables not included and must be purchased separately to match the installation confi guration.

Specifications
Power
Nominal supply voltage:12 V / 24 V dc
Operating voltage range:10.8 V to 32 V dc
Power consumption:Alpha 9: 12.27 W (maximum) @ 12 V dc / 12.51 W (maximum)@ 24 V dc
Enviromental
Operating temperature range:-25°C to +55°C (-13°F to +131°F)
Waterproof rating:IPx6 and IPx7
Display
Type:Alpha 9: 9" IPS TFT LCD
Brightness / Luminance:1500 nits / 1500 cd/m2
Viewing angles:Portrait: 85 + / 85 +
Landscape: 85 + / 85 +
Resolution:Alpha 9: 1280 (H) x 720 (V)
Aspect ratio:Alpha 9: 16 : 9
PPI (Pixels Per Inch):Alpha 9: 163 PPI
Colours:24-bit colour (16.7 million colours)
Refresh rate:60 Hz
Connections
Data connections:1x Daisy-chain connector and 1x Power / RayNet Ethernet connector
Physical
Dimensions W x H x D5.86in x 9.29in x 1.34in
Weight2.6lbs

What's in the Box:
  • Alpha 9 Display
  • Suncover
  • Waterproof gasket
  • Documentation
  • m4 x 40mm studs x 4
  • thumb nuts x 4
  • mounting brackets x 2
