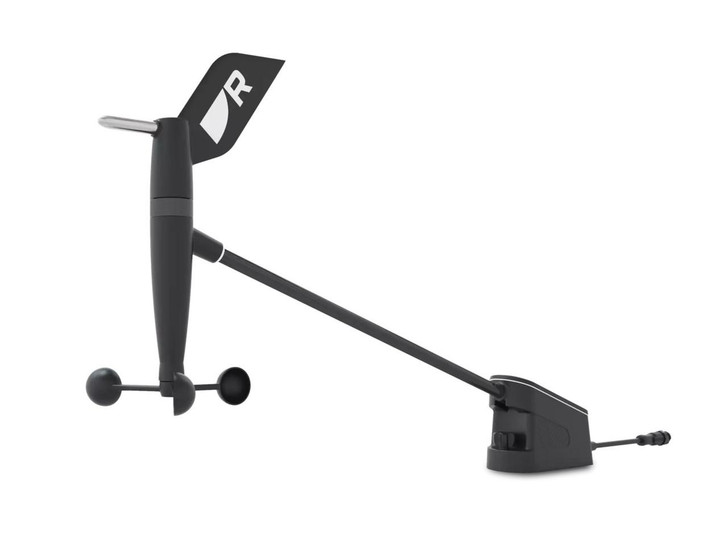

Raymarine RSW Smart Wind Transducer Short Arm 30m Cable

$788.39
Share

Options

$788.39
Or
Ships 1–2 Business Days Fast processing & tracking
Free Shipping $500+ Best value for bulk orders
Easy 60-Day Returns Some exclusions apply
Trusted By Over 250,000+ Happy Customers Serving outdoor enthusiasts nationwide

Info

SKU:RAYE70670 ,UPC:

SKU: RAYE70670

UPC: 723193846629

MPN: E70670

Info

SKU:
RAYE70670
UPC:
723193846629
MPN:
E70670

Description

Raymarine RSW Wired, Smart Wind transducer with 30m Cable

Model: E70670
  • Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
  • Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.
  • Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.

Specifications
LengthWind transducer (including cable): 657.762 mm (25.90 in)
WidthWind transducer: 46.96 mm (1.85 in)
HeightWind transducer: 305.86 mm (12.04 in)
Power
Nominal supply voltage12 V dc (via SeaTalk NG)
Operating voltage range9 V to 16 V dc
Power Consumption< 100 mW
Fuse ratingEnsure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating:1
Environmental
Operating temperature range-25°C to +55°C (-13°F to +131°F)
Storage temperature range-30°C to +70°C (-22°F to +158°F)
Relative humidityMasthead: 100%
Waterproof ratingWind transducer: IPx6/IPx7
Wind115 mph (185 kph)
VibrationEN 60945:2002 (exposed)

What's in the Box:
  • No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
  • No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
  • 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
  • Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
  • Mast cable, 30 m (98.43 ft) reel
  • Documentation
  • Wind transducer
  • Smart wind wired gateway
  • SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)
