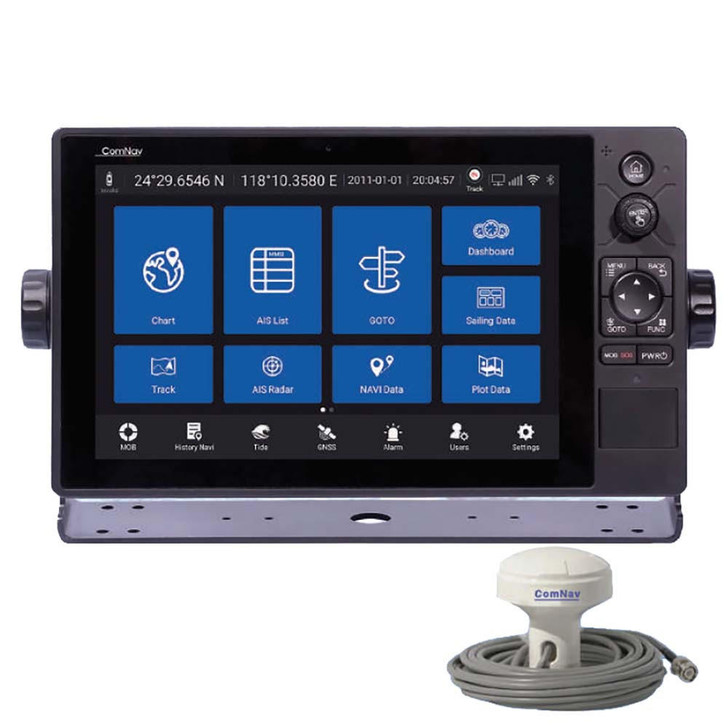

ComNav M10 DGPS Chartplotter w/Integrated Class B AIS Transceiver

M10 DGPS Chartplotter with Integrated Class B AIS Transceiver

The Comnav M10 DGPS uses the ephemeris combined with a histogram to show the GNSS satellite situation and signal strength. It supports GPS and BDS positioning systems running together to improve accuracy.

The new digital repeater dial provides an easy-to-read and visualizable image for HDT, COG, SOG, BRG, RNG, Longitude, Latitude, XTE, ETA, DPT, TEMP, Wind, and Date.

Chartplotter Specifications:

• Operation System - Android 5.1 with OpenGL ES .0 & OpenCL 1.1
• CPU - Cortex-A17 Quad Core
• CPU Speed - 1.8GHz  Bit
• RAM - 2GB DDR3 1333MHz
• Flash Memory - 16GB
• Video Engine - Mali-T764
• Keyboard - 1 Knob Encoder and 9 Function Keys
• Touch Panel - Capacitive Multi-Touch Screen
• Size - 10.1"
• Brightness - 800 cd/m² (Max)
• Viewing Angle - Capacitive Multi-Touch Screen
• Resolution - 1280x800
• Power Voltage - DC 10v-36v
• Power Consumption - 14W or less (24 VDC)
• Audio - 1W
• Micro SD Card Slot - Supports Two 128G High Speed Micro-SD Cards

AIS Transceiver Specifications:

• Frequency - 156.025 - 162.025MHz
• Bandwidth - 25KHz
• Modulation - GMSK/FM
• Data Rate - 9600bps
• Number of AIS Transmitters - 1
• Number of AIS Receivers - 2 Channels: Channel A CH87B (161.975MHz), Channel B CH88B (162.025MHz)
• Transmitting Power - 2W
• Rx Sensitivity - <-107 dBm @ 20% PER
