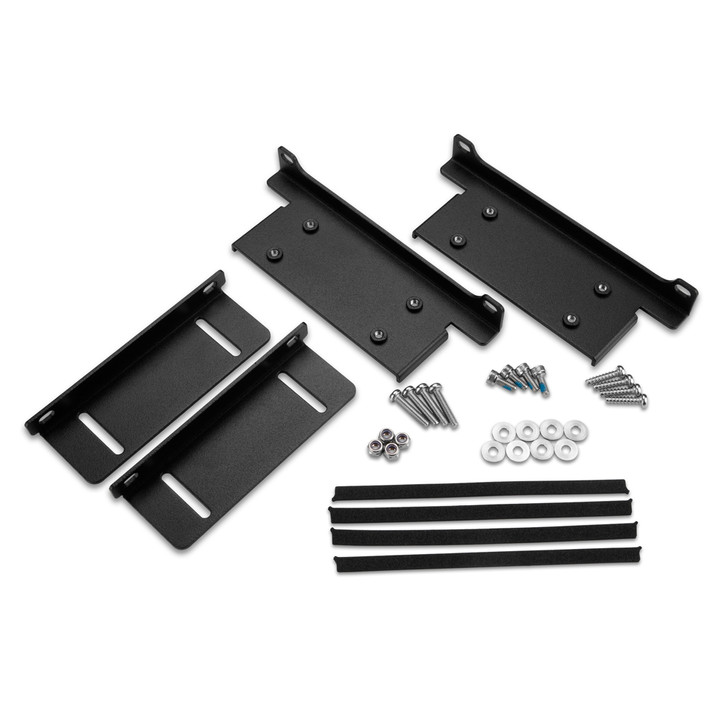

Garmin Flat Mount Kit f/500 XS Series

The Garmin Flat Mount Kit for 500 XS Series transforms your helm into a clean, integrated display installation by mounting your chartplotter flush against a flat panel surface. This approach eliminates the traditional pedestal or bracket look, delivering the sleek, custom appearance serious boaters demand while maintaining full access to all unit functions.

The kit includes all necessary mounting hardware, a detailed installation template, and step-by-step instructions. This mount style requires full access to the rear of your mounting surface and precision fabrication or cutting to achieve the desired integrated look. The template guides the cutout dimensions, minimizing measurement error. Many boat owners opt for professional installation to ensure the opening is cut to exact specifications and the unit sits perfectly flush with the surrounding dash or console.

Ideal for weekend anglers upgrading an existing helm and serious offshore fishermen rebuilding console layouts, the flat-mount option works best on fiberglass consoles or aluminum panels where careful tool work can produce clean, precise openings. Weekend boaters appreciate the finished appearance; tournament and commercial operators value the space savings and reduced obstruction to sightlines. The 500 XS Series is known for compact sizing on smaller to mid-sized vessels, making this flush-mount kit a practical choice for boats where every inch of console real estate matters.

Garmin's 500 XS network capabilities and intuitive interface are unchanged by the mounting method—only the physical presentation shifts. Pairing this kit with professional installation from a qualified marine electronics technician ensures a weatherproof seal, proper backing plate support, and the polished result that marks a professional-grade retrofit.
