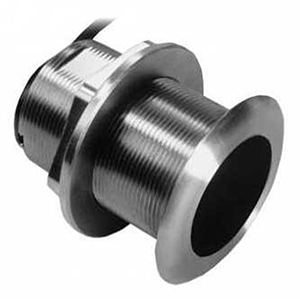

Garmin SS60 0° Tilt Thru-Hull 600W, 50/200kHz Transducer - 8-Pin

The Garmin SS60 0° Tilt Thru-Hull 600W, 50/200kHz Transducer with 8-Pin connector is a stainless steel marine transducer engineered for fiberglass and wood hull installations. This vertical-beam transducer delivers 600 watts of sonar power across dual operating frequencies (50 and 200 kHz), making it a core component of modern fish-finding and navigation systems for both recreational and serious fishing vessels.

With a maximum depth capability of 800 to 1,200 feet, the SS60 provides wide beamwidth coverage at 45 degrees on the 50 kHz frequency and sharp 12-degree resolution at 200 kHz, allowing anglers to switch between broad target detection and high-definition imaging. The 0° tilt mounting and 0 to 7-degree deadrise tolerance accommodate standard transom installations without fairing distortion. The 8-pin connector design integrates with compatible Garmin fish finder and chartplotter units, ensuring reliable data transmission in saltwater and freshwater environments.

This transducer suits weekend anglers running shallow coastal bays, lake fisheries, and offshore operators working deeper blue-water zones where dual-frequency flexibility is essential. Weekend boaters benefit from the 200 kHz high-detail mode for structure identification in shallower waters, while offshore crews rely on the 50 kHz penetration for deep-water fish location. Installation requires careful hull preparation and alignment to avoid transducer-induced noise or signal loss. The SS60 is a direct replacement upgrade for systems using compatible Garmin transducer mounts and 8-pin sonar cables.
