SKU: GAR0101311502
UPC: 753759310851
MPN: 010-13115-02

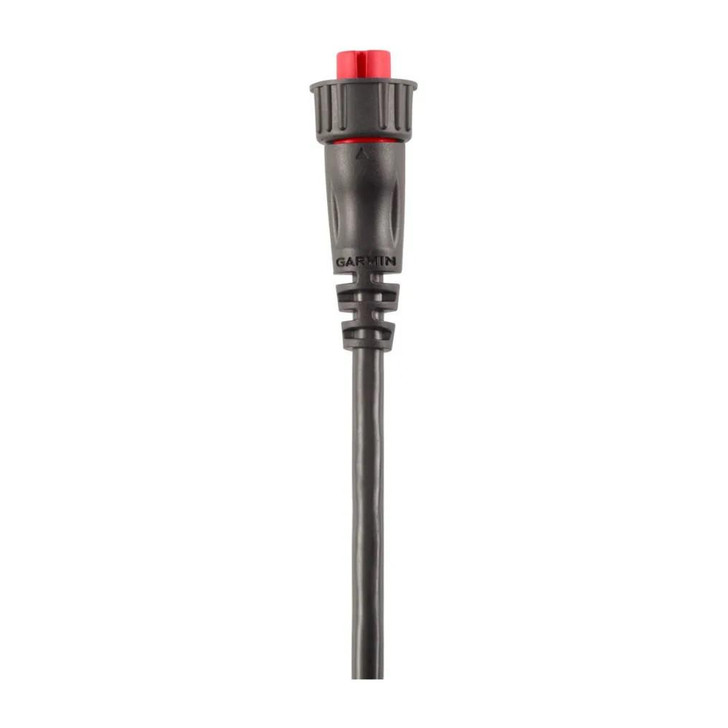

The Garmin 010-13115-02 is a 6-foot, 2-pin threaded power cable built to wire Echomap UHD2 chartplotters in the 6-inch, 7-inch, and 9-inch sizes. It's the replacement or backup connection anglers and boaters reach for when an original cable gets damaged, cut short during a re-rig, or left behind with a previous boat. The threaded connector locks to the display mount so vibration and wave slap won't loosen the power feed. If you're running one of these displays as a dedicated sonar head, this is the cable that keeps it fed. Browse our full lineup of color chartplotters if you need the display too.
This cable carries both power and data on a 2-pin threaded fitting, with an in-line fuse holder pre-fitted so the display stays protected against a wiring fault or short. Garmin's install documentation calls for a minimum 18-gauge (0.82 mm²) wire run when extending the supply lead, which keeps voltage drop in check on longer routes from the battery or fuse panel. The cable also breaks out data wiring for the older 0183 marine protocol, so it can feed sentences to or from compatible instruments. It fits the Echomap UHD2 6sv, 7sv, and 9sv heads as well as the LiveScope and LiveScope Plus ice fishing bundles. At roughly 0.15 lbs it adds almost nothing to a console run.
Keep one of these in the spare box on any boat running an Echomap UHD2 head, especially if you swap displays between a console and a portable kit, or fish hard water where cables get flexed in the cold. When you're integrating the plotter with a heading sensor, autopilot, or other instruments over the older serial standard, this cable gives you the data lines to make those connections. For larger networked builds, see our selection of network cables and connectors and other plotter accessories to round out the install.
It fits the Garmin Echomap UHD2 chartplotters in the 6-inch, 7-inch, and 9-inch sizes, including the 6sv, 7sv, and 9sv models. It also works with the LiveScope and LiveScope Plus ice fishing bundles built around those heads.
Yes. The cable ships with an in-line fuse holder and the appropriate fuse already fitted, so the display is protected against a short or wiring fault when you connect it to the battery or fuse panel.
The cable is 6 feet long. If you need to extend the power run to a battery or fuse block farther away, Garmin's install documentation calls for a minimum 18-gauge (0.82 mm²) wire to limit voltage drop.
Yes. Along with the power leads, the cable breaks out data wiring for the older 0183 serial protocol, letting the plotter exchange sentences with compatible instruments such as a heading sensor or autopilot.
Yes. This is the genuine Garmin power cable, part number 010-13115-02, the same threaded 2-pin cable supplied for the Echomap UHD2 displays it supports.
