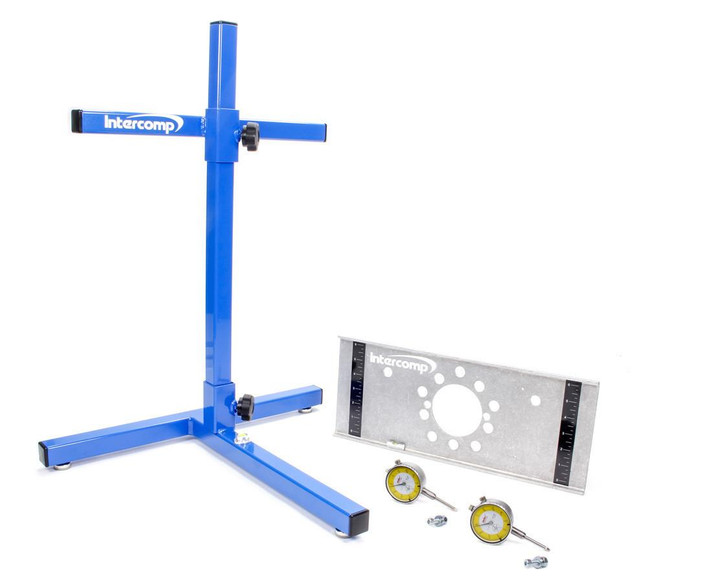

Mechanical Bump Steer Gauge

The Mechanical Bump Steer Gauge is a precision alignment and suspension diagnostic tool designed for automotive technicians, alignment shops, and serious enthusiasts who require accurate wheel geometry measurement. Bump steer—the change in toe angle as suspension components travel vertically—is a critical but often overlooked parameter that directly affects handling response, tire wear, and directional stability. This adjustable gauge kit eliminates guesswork by providing real-time mechanical feedback during suspension travel, enabling you to detect and correct bump steer issues before they compromise vehicle performance or safety.

This mechanical bump steer gauge features an analog dial readout that registers toe changes in increments as the suspension moves through its full range of motion. The kit includes an adjustable stand and a 5-bolt or wide 5 wheel plate interface, accommodating common domestic and performance vehicle bolt patterns without requiring additional adapters. The mechanical design—absent electronic sensors or calibration drift—delivers repeatable, field-proven accuracy that professionals rely on for quality alignment work. At 18.1 lbs with compact overall dimensions of 19.5 x 6.2 x 20.9 inches, the gauge remains portable enough for mobile alignment services while maintaining the rigidity needed for precise measurements on lifted, lowered, or heavily modified suspension systems.

Alignment technicians, suspension tuners, and off-road vehicle builders benefit most from this tool when diagnosing handling complaints or validating custom suspension geometry on trucks, race cars, and high-performance builds. The mechanical bump steer gauge is equally valuable for identifying manufacturer defects, worn steering components, or bent suspension arms that may not show up during static alignment checks. Installation is straightforward—mount the gauge to the wheel using the 5-bolt plate, compress and release the suspension through its travel envelope, and observe toe change readings on the analog dial. This direct, non-electronic approach makes it indispensable for shops without access to computer-aided alignment systems or for field troubleshooting where portability and self-contained operation are essential.
