SKU: AIRB75C12M14HB
MPN: B75C-12-M-14HB

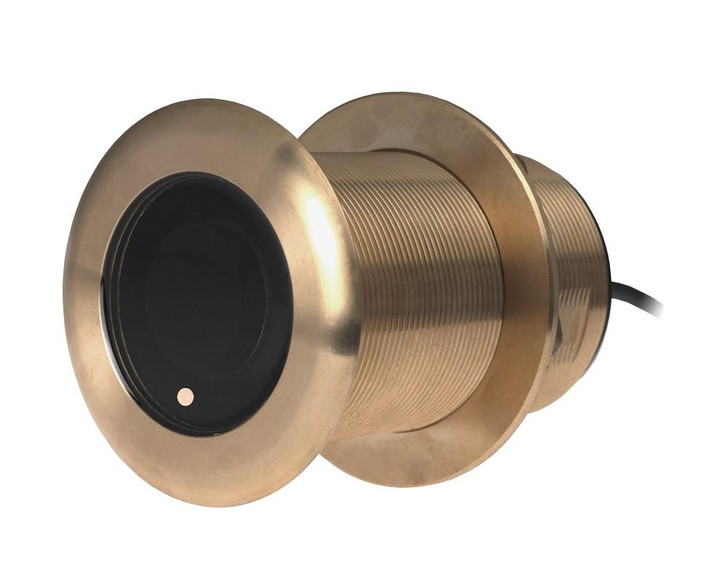

Airmar B75C-12-M 12d Tilt Medium CHIRP with Humminbird 14-Pin Mix-N-Match Cable
Model: B75C-12-M-14HBAirmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900').
When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.
Specifications| Cable-Length | 9 m (30') |
| Deadrise Range | 8° to 15° |
| Frequency Band | Medium CHIRP |
| Hole Size | 70 mm (2-13/16") |
| Housing Material: BronzeHousing Material | Bronze |
| Power Rating | 600 W |
| Retractable housing | No |
| Tilt Angle | 12° |
| Transducer Functions | Depth, Temperature |
| Medium frequency | 80 to 130 kHz |
| Beam width | 24° to 16° |
| Maximum depth | 274 m (900') |
