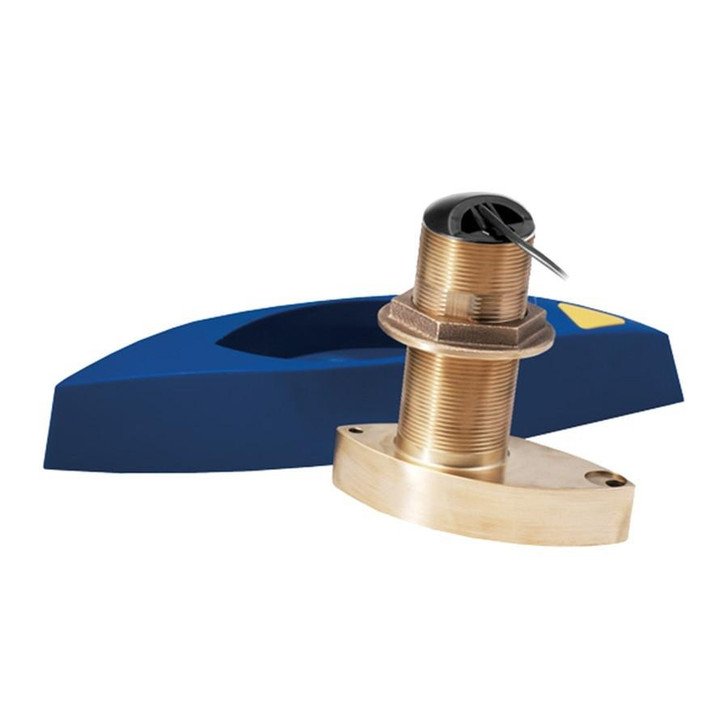

Airmar B785C Bronze Transducer Medium CHIRP With Furuno 10-Pin

$1,099.00
Share

Options

$1,099.00
Or
Ships 1–2 Business Days Fast processing & tracking
Free Shipping $500+ Best value for bulk orders
Easy 60-Day Returns Some exclusions apply

Info

SKU:AIRB785CM10F

SKU: AIRB785CM10F

MPN: B785C-M-10F

Info

SKU:
AIRB785CM10F
MPN:
B785C-M-10F

Description

Airmar B785C Triducer Medium CHIRP with Furuno 10-Pin Mix-N-Match Cable

Model: B785C-M-10F
  • Depth & fast-responDepth and fast-response water-temperature sensing
  • 600 W of power
  • Medium frequency: 80 to 130 kHz
  • 24° to 16° beamwidth
  • Maximum depth of 274 m (900')
  • 50 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
  • Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
  • Recommended for use on planing or displacement hull
  • Bronze housing with High-performance Fairing for optimal performance at higher speeds
  • Patented Xducer ID® technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications
Cable-Length9 m (30ft)
Acoustic WindowUrethane
ConnectorAirmar 12-Pin (MMC)
Deadrise RangeUp to 24° with fairing
Display ConnectorFuruno 10-Pin
Frequency BandMedium 80-130 kHz
Hole Size51 mm (2in)
Housing MaterialBronze
Max Depth274 m (900ft)
Medium Frequency Beamwidth24°-16°
Power Rating600 W
Single or Dual FrequencyCHIRP-Ready Single-Band
Usable Shaft Length121 mm (4.75")

What's in the Box:
  • B785C-M-MM Triducer
  • Fairing Block
  • Anti-rotation Bolt
  • MMC-10F cable
