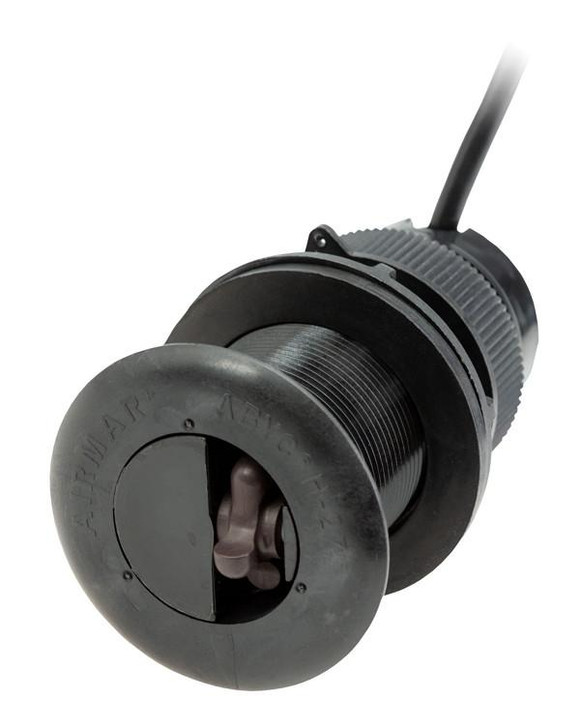

Simrad DST810 Multi Sensor Airmar Smart Transducer Plastic Thru Hull

$419.00
Share

Ships Within 1-2 Business Days

Free Shipping On Orders Over $500

Options

$419.00
Or

WARNING ⚠️

You must be 18 or older to purchase shotgun or rifle ammunition and 21 or older to purchase handgun ammunition and firearms. Please reference our requirements for ammunition orders to "restricted" states HERE.  Always make sure you use the correct ammunition for your firearms. Ammo cannot be shipped to a PO Box. Please reference state & local laws before making a firearm or ammunition purchase.

Purchasing a Firearm? Click HERE to see our firearm purchasing guide.

Info

SKU:SIM00015735001 ,UPC:

SKU: SIM00015735001

UPC: 9420064117895

MPN: 000-15735-001

Info

SKU:
SIM00015735001
UPC:
9420064117895
MPN:
000-15735-001

Description

Simrad IDST-810 active Depth, Speed, Temperature thru-Hull plastic 235 kHz transducer.

Model: 000-15735-001
  • 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
  • Integrated attitude sensor for heel and trim benefits sailing and power boats
  • Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
  • DST810 stores configurations and delivers data to the NMEA 2000® network.
  • Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
  • Popular depth sensor for shallow water performance.
Specifications
Acoustic WindowUrethane
Hull DeadriseUp to 22°
Data Update RateDepth 1X/second
Data Update RateSpeed 5X/second
Attitude Accuracy+/— 1° nominal after sensor calibration
Depth Frequency235 kHz
Minimum Depth Range0.5 m (1.6')
Maximum Depth RangeUp to 100 m (330')—NMEA 2000®
Speed RangeUp to 45 knots
Pressure Rating3 m (10')
Pulse Rate20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Supply Voltage9 VDC to 16 VDC—per NMEA 2000
Supply Current<200 mA—per NMEA 2000®
Wireless ProtocolBluetooth Low Energy (BLE)
Wireless RangeUp to 30 feet depending on mount location
Standard Cable Length6 m (20') DeviceNet—NMEA 2000®
Temperature Sensor Accuracy+/-0.5°C (+/-1.8°F)
Temperature Sensor Range-10°C to 40°C (14°F to 104°F)
NMEA 2000 Load Equivalency Number (LEN)3

What's in the Box:
  • DST-810 Insert
  • Plastic Housing
