SKU: JLA0100332600
UPC: 699440984096
MPN: 010-03326-00

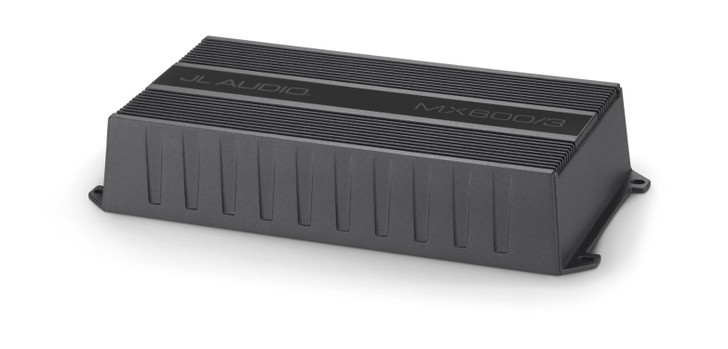

JL Audio MX Marine Amplifier 3-Channel Full-Range 600 Watts 12v
98409
Model: MX600/33-Channel Class D System Amplifier, 100 W x 2 + 400 W x 1 @ 2 ohms / 75 W x 2 + 250 W x 1 @ 4 ohms - 14.4V
Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.
Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| Rated Continuous (RMS) Power @ 14.4 V | |
| Main Channels @ 4 ohms | 75 W RMS x 2 |
| Main Channels @ 2 ohms | 100 W RMS x 2 |
| Main Channels - Bridged @ 4 ohms | 200 W RMS x 1 |
| Subwoofer Channel @ 4 ohms | 250 W RMS x 1 |
| Subwoofer Channel @ 3 ohms | 300 W RMS x 1 |
| Subwoofer Channel @ 2 ohms | 400 W RMS x 1 |
| Subwoofer Channel @ 1.5 ohms | N/A |
| Rated Continuous (RMS) Power @ 12.5 V | |
| Main Channels @ 4 ohms | 50 W RMS x 2 |
| Main Channels @ 2 ohms | 80 W RMS x 2 |
| Main Channels - Bridged @ 4 ohms | 100 W RMS x 1 |
| Subwoofer Channel @ 4 ohms | 200 W RMS x 1 |
| Subwoofer Channel @ 3 ohms | 250 W RMS x 1 |
| Subwoofer Channel @ 2 ohms | 300 W RMS x 1 |
| Subwoofer Channel @ 1.5 ohms | N/A |
| General Specifications | |
| Frequency Response | 20 Hz - 20 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 ohms | >92 / 50 Hz |
| Damping Factor @ 2 ohms | >43 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <1% @ 2 ohms per Ch. |
| THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 ohms per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 250 mV - 4 V RMS (Low) to 580 mV - 14 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 60 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range: Channels 1 & 2 (front) | 35 Hz - 300 Hz |
| Filter Frequency Range: Subwoofer Channel | 40 Hz - 400 Hz |
| Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
| Filter Mode(s): Subwoofer Channel | Low-Pass only |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Subwoofer Level Control | Optional (RBC-1) |
| Remote Level Modes | N/A |
| Channel Input Mode Switch | Yes (2/4 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
| Physical Specifications | |
| Height | 1.77 in / 45 mm |
| Width | 9.33 in / 237 mm |
| Depth | 4.50 in / 115 mm |
