Axle Alignment Fixture Pinto Spindle

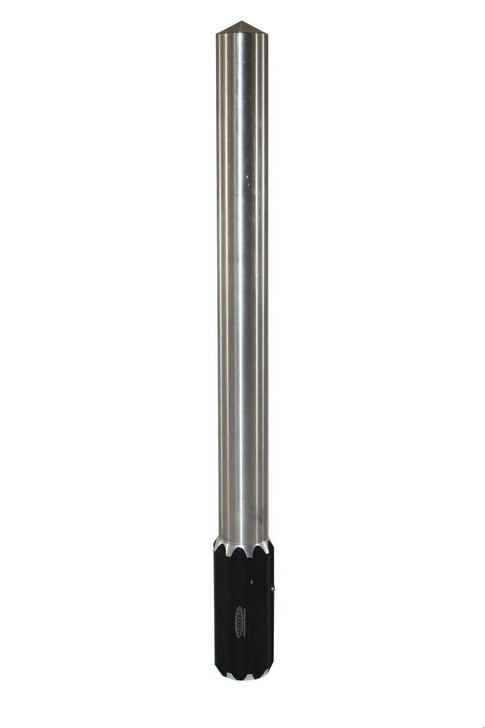

The Axle Alignment Fixture Pinto Spindle from DRP Performance is a precision rear axle assembly fixture engineered for fabricators, restoration specialists, and performance shops working with classic Pinto platform vehicles. This specialized alignment tool solves a critical problem: accurate spindle positioning and bore alignment during axle assembly or rebuild operations. By maintaining precise geometric relationships during installation, this fixture eliminates costly misalignment issues that compromise handling, tire wear, and brake performance.

Constructed from durable stainless steel with a combination black and natural finish, the Axle Alignment Fixture Pinto Spindle features a 13/16-20 inch spindle specification matched to Pinto rear axle geometry. The fixture's 16.6-inch length provides ample contact surface for stable workholding, while its compact 1.65 x 1.6-inch cross-section allows access in tight engine bay environments during installation or service. The 3.62-pound weight makes it easily portable across the shop floor without sacrificing structural rigidity required for precise alignment tolerances.

This fixture is indispensable for anyone rebuilding or upgrading a Pinto rear axle assembly, particularly during suspension modifications or complete chassis restoration. It's equally valuable for high-performance builds where rear axle alignment directly impacts weight transfer and cornering grip. Installation is straightforward—the fixture mounts directly onto the spindle bore to guide proper seating of axle bearings and races, ensuring runout stays within OEM specification. Each unit is supplied complete and ready to use.
