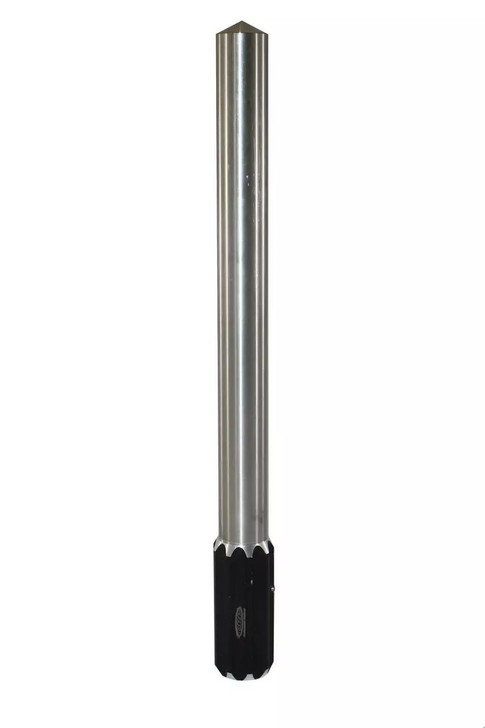

Axle Alignment Fixture 3/4in-20 GM Spindle

The Axle Alignment Fixture 3/4in-20 GM Spindle from DRP Performance is a precision assembly and maintenance tool designed for mechanics and enthusiasts working on General Motors rear axle systems. This fixture addresses a critical challenge in axle work: maintaining proper spindle alignment during assembly, bearing service, or seal replacement. Whether you're rebuilding a classic muscle car, servicing a truck differential, or restoring a performance vehicle, this tool eliminates guesswork and ensures factory-spec alignment without costly machine shop trips.

Machined from aluminum and finished in black and clear anodization for corrosion resistance and durability, the Axle Alignment Fixture features a 3/4-20 thread specification that matches OEM GM spindle configurations precisely. The compact yet rigid design—measuring 1.75 x 1.75 x 17 inches and weighing just 3.7 pounds—provides stability during bearing installation, seal seating, and spindle threading operations. The anodized aluminum construction resists workshop wear, rust, and chemical exposure, while the clear anodize layer allows visual inspection of the spindle threading and engagement without disassembly. This level of accuracy prevents cross-threading, improper bearing preload, and misalignment issues that can result in premature wear, noise, or catastrophic failure on the road.

Rear axle specialists, transmission shops, and hands-on builders working with GM platforms—particularly trucks, Camaros, Corvettes, and performance builds—rely on this fixture for repeatability and confidence. Use it during complete axle assembly, bearing replacement, or when troubleshooting noise and vibration complaints related to spindle runout or installation error. The 3/4-20 specification is compatible with most GM rear axle housings from the 1950s through modern applications, making it an essential bench tool for any shop or garage tackling serious suspension and drivetrain work. Installation is straightforward: thread onto the spindle, seat components with proper torque values, and verify alignment before final assembly.
