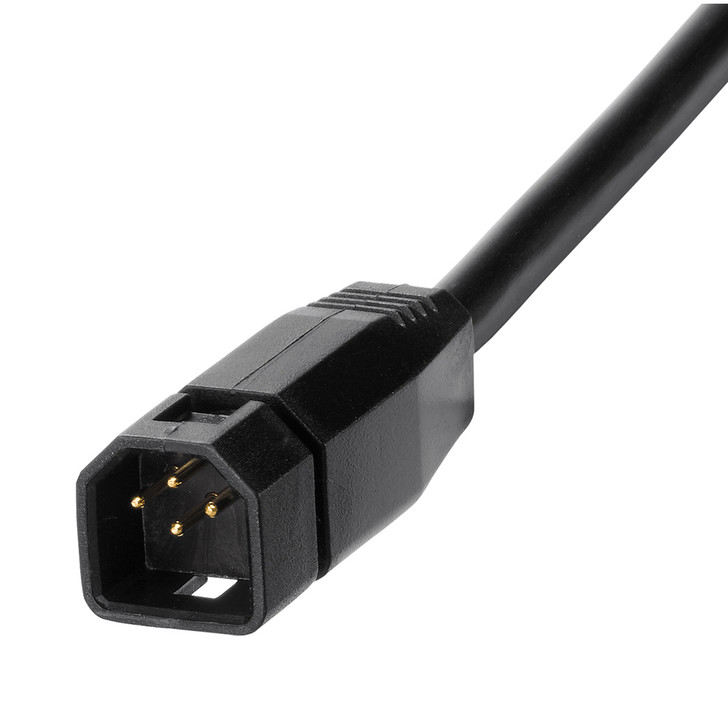

The Humminbird XTM-9-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Trolling Motor Transducer with Temperature for HELIX MEGA DI units is designed for anglers seeking clarity in shallow and mid-range water columns. This transducer mounts directly to your trolling motor, ensuring hull integrity while providing essential sonar capabilities for both competitive and recreational fishing.
Utilizing MEGA DI+ Dual Spectrum CHIRP technology, it combines traditional 200 kHz single-beam performance with high-definition 455/800 kHz coverage, offering exceptional target separation and bottom definition in depths up to 300 feet. The integrated temperature sensor delivers real-time water temperature readings, which are crucial for understanding seasonal patterns and fish behavior.
Anglers using Humminbird HELIX MEGA DI systems will find this transducer invaluable for down-imaging applications, particularly when navigating shallow structures and identifying suspended baitfish schools. Installation requires a compatible HELIX MEGA DI head unit and appropriate trolling motor bracket setup; verify your specifications for optimal performance.
SpecificationDetail
MPN / Part Number
710281-1
Sonar Type
MEGA DI+ Dual Spectrum CHIRP
Frequency Options
200 kHz, 455 kHz, 800 kHz
Mount Type
Trolling Motor Mount
Temperature Sensor
Integrated
Compatible Display Units
Humminbird HELIX MEGA DI
Maximum Depth Range
300+ feet
Model Number
XTM-9-HW-MDI-T
