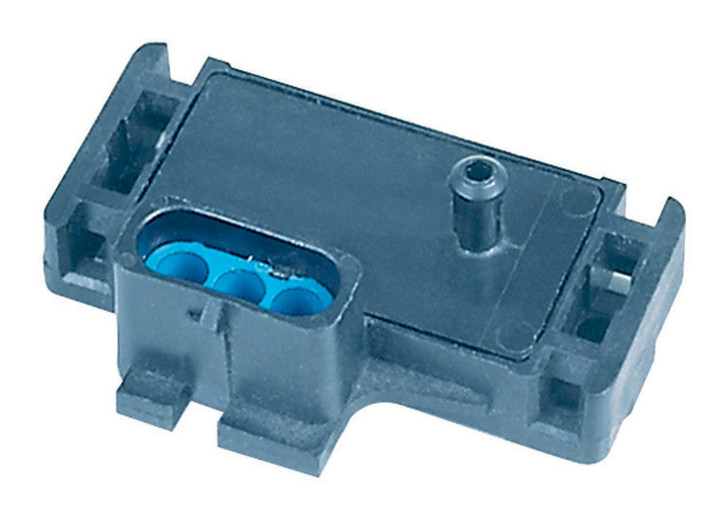

3-Bar Map Sensor

The 3-Bar Map Sensor from MSD Ignition is an essential component for fuel-injected engine tuning and performance calibration. Whether you're building a forced-induction setup, fine-tuning a naturally aspirated platform, or diagnosing fuel mixture issues, this manifold absolute pressure sensor delivers the real-time boost and atmospheric data your engine control unit needs to maintain optimal air-fuel ratios across varying load conditions. Designed for serious builders and mechanics who demand precision measurement over factory tolerances, the MSD 3-Bar sensor is the upgrade choice for custom ECU programming and standalone engine management systems.

This sensor measures manifold pressure across a 3-bar (approximately 44 psi) range, providing enhanced resolution and accuracy compared to standard 1-bar factory units. The wider pressure range allows precise detection of both vacuum and boost conditions, critical for turbo and supercharged applications where stock sensors hit their ceiling and cause ECU fallback or limp-mode engagement. MSD's design ensures stable signal output under thermal cycling and vibration, with robust construction that withstands harsh engine bay environments. The compact footprint (3.4 x 2.35 x 5.7 inches) and lightweight profile (0.2 lbs) make installation straightforward on most fuel-injected platforms without requiring custom mounting brackets.

Technicians and performance enthusiasts working with custom tuning software, wet-kit conversions, or engine swaps will find this sensor indispensable for maintaining closed-loop fueling authority and preventing destructive lean-out conditions. Installation is plug-and-play on most modern OBD-II platforms, though users should verify connector compatibility and calibration requirements with their specific ECU or tuning software before installation. The MSD 3-Bar sensor is equally effective for diagnostic work—comparing sensor output against known-good baselines helps isolate boost leaks, vacuum leaks, and ECU communication faults that factory single-bar sensors cannot reliably detect.
