4.10 12 Bolt GM Truck

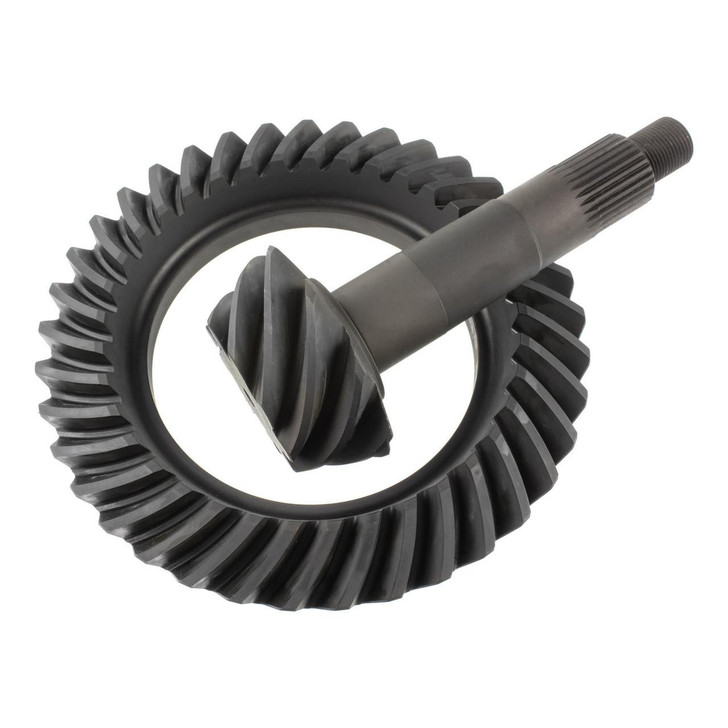

The 4.10 12 Bolt GM Truck ring and pinion set is a precision differential gearing solution engineered for heavy-duty light-truck applications requiring maximum torque multiplication and low-end pulling power. Designed for GM 12-bolt differentials, this thick-gear assembly serves fleet operators, off-road enthusiasts, and truck owners who demand reliability under extreme load conditions. A 4.10 ratio delivers aggressive gear reduction—ideal for towing, hauling, or sustained off-pavement work where engine RPM responsiveness and breakaway torque are critical.

This ring and pinion kit features a 30-spline pinion shaft mated to a full-depth thick gear design, which distributes contact stress across a larger tooth profile and resists shock loads inherent to towing and rock-crawling. The 8.875-inch ring diameter is standard for 3-Series GM 12-bolt housings, ensuring direct bolt-in compatibility without modification. Thick-gear construction minimizes deflection under peak torque, extending service life in applications where factory gearing proves inadequate. The 4.10 reduction multiplies engine output efficiently, maintaining drivability while lowering highway RPM compared to steeper ratios.

Fleet managers, commercial truck operators, and serious off-road builders benefit most from this upgrade, particularly those upgrading from stock 3.73 or 3.42 ratios. Installation requires full differential disassembly and precision setup—backlash, bearing preload, and contact pattern must be verified during assembly. This kit is compatible with GM 12-bolt differentials found in classic Chevrolet trucks, Blazers, and utility vehicles from the 1960s through early 2000s. Proper installation and break-in procedures ensure optimal performance and long-term durability in high-stress service.
