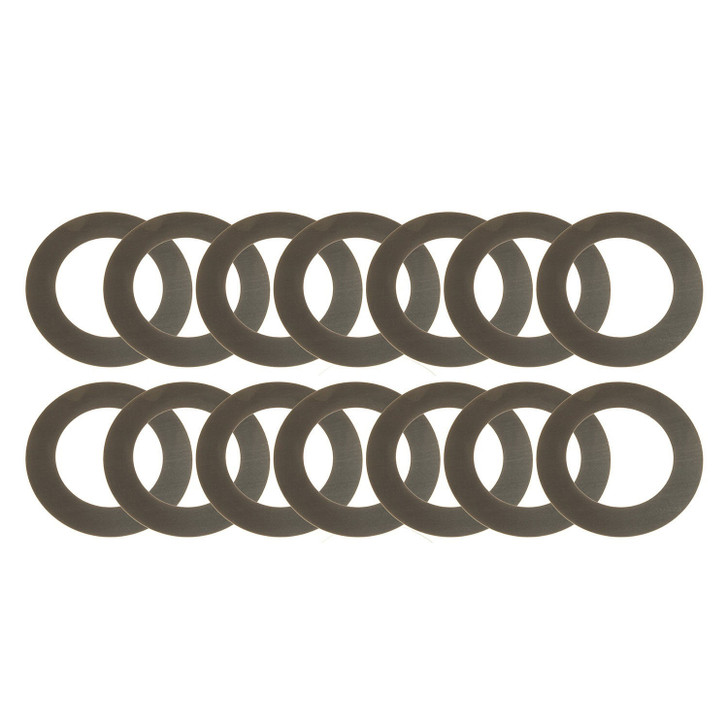

GM 8.5 Carrier Shims

The Richmond GM 8.5 Carrier Shims are precision-engineered adjustment components designed for General Motors 8.5-inch differentials, enabling technicians to fine-tune pinion depth and gear mesh geometry during differential rebuild or repair. These shims are essential for anyone performing differential maintenance, ratio changes, or complete gear set replacement on GM 8.5 axles found in pickup trucks, SUVs, and performance vehicles. Proper carrier shimming directly impacts load distribution, noise reduction, and differential longevity, making this Richmond product a critical component in any serious differential overhaul.

Richmond carrier shims function by adjusting the vertical position of the differential carrier relative to the ring gear, which controls pinion depth and mesh pattern contact. Precision shimming ensures optimal tooth engagement, minimizes backlash, and prevents premature gear wear or catastrophic failure under load. The compact design—measuring 3.35 x 2.3 x 3.7 inches and weighing just 0.54 pounds—allows for easy installation in tight differential housing spaces. These shims are manufactured to tight tolerances, allowing mechanics to achieve the exact carrier height specifications required for proper ring and pinion geometry.

Differential builders, transmission shops, and serious off-road enthusiasts rely on Richmond carrier shims to ensure reliable performance during full differential rebuilds or aftermarket gear installations. Whether you're upgrading to a higher numerically ratio, replacing worn gears, or restoring stock differentials, these shims are indispensable for achieving factory or custom mesh patterns. Installation requires proper differential disassembly and measurement tools, making them ideal for experienced mechanics or professional shops with dial indicator and bearing setup knowledge. Richmond's reputation for precision ensures repeatable results and eliminates guesswork when dialing in carrier depth on GM 8.5 differentials.
