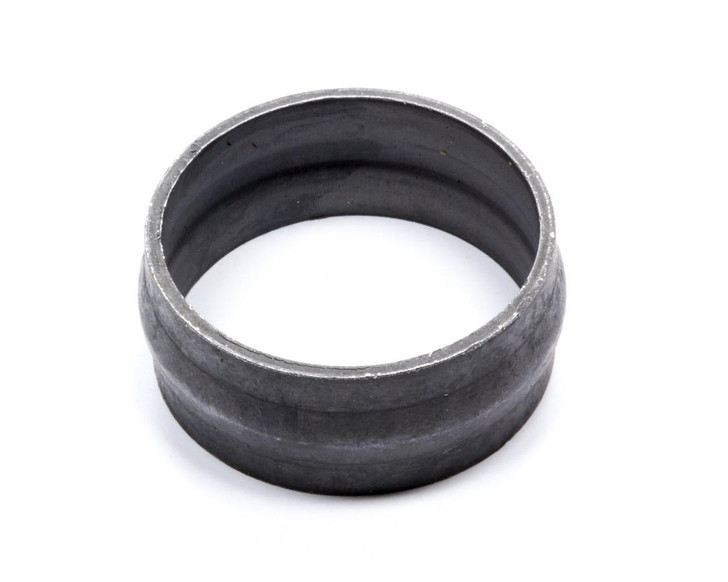

GM 9.5 Crush Sleeve

The GM 9.5 Crush Sleeve is a critical drivetrain component engineered for the GM 14-bolt rear differential, serving heavy-duty trucks, commercial vehicles, and specialized applications where axle durability and proper load transfer are non-negotiable. Built to handle extreme torque loads and shock loads inherent in work trucks and off-road platforms, this crush sleeve maintains precise pinion bearing preload—a function that directly affects differential longevity, noise control, and power delivery reliability. Anyone rebuilding or servicing a 14-bolt differential, whether in field maintenance or shop conditions, depends on this component to restore factory specifications and prevent premature bearing wear.

Constructed from hardened steel in natural finish, the GM 9.5 Crush Sleeve compresses under the pinion nut to establish and maintain the exact bearing preload tolerance required for smooth, efficient differential operation. The crushing action—which gives this component its name—creates a precise mechanical lock that prevents bearing play while allowing controlled spindle clearance. At just 0.07 lbs and measuring 1.5 x 1.25 x 2.4 inches, this compact sleeve is sized for the 14-bolt platform and must be replaced during any differential rebuild to ensure correct preload specifications, as repeated crushing degrades its ability to hold tension across multiple service cycles.

Technicians, fleet maintenance teams, and serious off-road enthusiasts rebuilding GM 14-bolt differentials will find this OEM-specification replacement essential for restoring proper bearing preload and eliminating noise and vibration issues that signal worn compression geometry. Installation requires careful torque sequencing during pinion nut assembly—improper installation will compromise both the crush sleeve and bearing life. Use this component whenever disassembling a 14-bolt differential for service, repair, or upgrade work to guarantee alignment with factory specifications and long-term reliability in demanding duty cycles.
