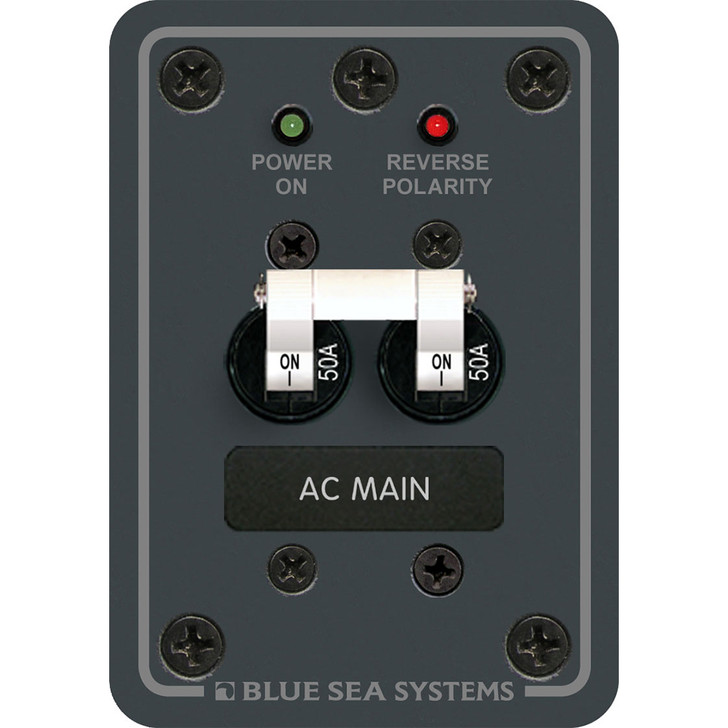

Blue Sea 8079 AC Main Only Circuit Breaker Panel - White Switches

The Blue Sea 8079 AC Main Only Circuit Breaker Panel with white switches is a compact electrical control device designed for AC power distribution and circuit protection in marine, RV, and off-grid power systems. This 120V AC-rated panel combines switching and overcurrent protection into a single integrated unit, eliminating the need for separate components and reducing installation complexity in confined equipment spaces.

The 8079 features a "Trip Free" design that prevents the breaker from being held in the ON position during a fault condition, a critical safety feature that ensures the circuit will disconnect even if manual force is applied. A red reverse polarity indicating LED provides immediate visual feedback of improper wiring, protecting connected equipment from damage before power is drawn. The panel includes a safety ground screw on the rear for secure earthing. Rated for maximum voltage of 277V AC or 65V DC, this device handles the typical electrical stresses encountered in mobile and stationary power applications. The compact 4 x 3 x 7-inch form factor and 0.5-pound weight make it suitable for space-constrained installations.

This panel serves users maintaining auxiliary power systems in marine vessels, recreational vehicles, emergency backup power setups, and field-deployed electrical infrastructure. The main-only configuration is ideal for applications requiring a single distribution and protection point without branch circuit complexity. Blue Sea Systems' reputation in marine and mobile power control makes the 8079 a proven choice where reliability and code compliance are non-negotiable.

The white switch finish integrates cleanly with modern equipment panels while maintaining the industrial durability expected of Blue Sea's product line. Installation should be performed by qualified personnel familiar with AC power system requirements and local electrical codes.
