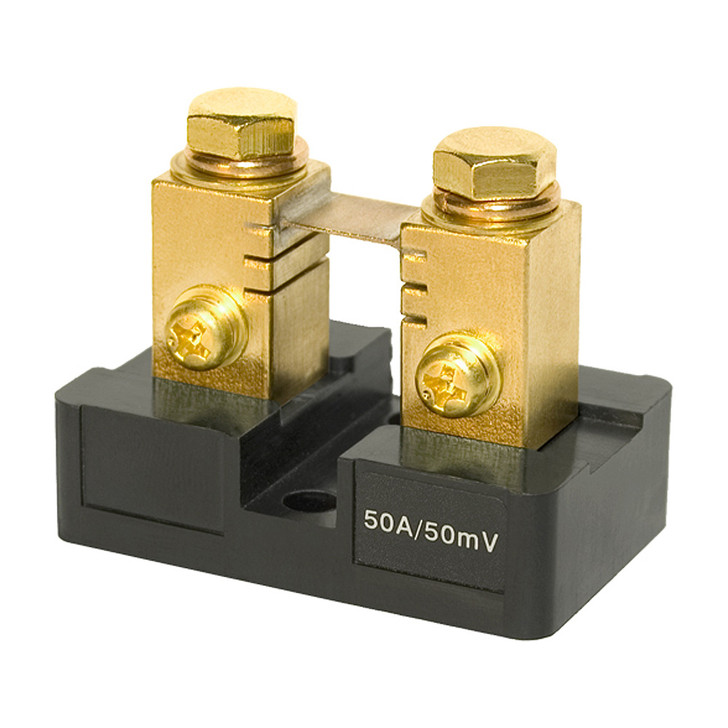

Blue Sea 9228 Analog Meter Shunt 50A/50mV

The Blue Sea 9228 Analog Meter Shunt 50A/50mV is a precision current measurement component designed for DC ammeter circuits in marine electrical systems. This shunt enables accurate monitoring of high-amperage loads by converting current flow into a proportional voltage signal readable by standard analog meters, making it essential for battery bank monitoring, charging system diagnostics, and load management aboard vessels.

Rated for 50 amperes at 50 millivolts, the Blue Sea Systems 9228 shunt delivers a precise 1mV per ampere conversion ratio. This specification allows users to read actual current draw directly from a 0–50A ammeter face, eliminating calculation errors and providing real-time insight into electrical system performance. For continuous operation, Blue Sea recommends operating the shunt at no more than 66% of its rated capacity under normal conditions—meaning sustained loads of roughly 33 amps—to minimize resistive heating and extend component life in the marine environment where thermal stress accelerates corrosion and component degradation.

This shunt is purpose-built for boaters and marine electricians who need to monitor high-current systems: lithium or lead-acid battery banks, alternator output, engine starting circuits, and auxiliary power distribution. Weekend fishermen managing modest house batteries benefit from load visibility, while serious offshore anglers and liveaboard cruisers running complex DC systems rely on accurate ammeter readings to prevent overcharging, detect parasitic draws, and optimize charging cycles. The shunt integrates directly into positive or negative battery bus conductors and works with any analog ammeter rated for 50 millivolts full-scale deflection.

Blue Sea Systems is recognized throughout the marine industry for electrical safety and reliability standards. The 9228 shunt meets the requirements of modern DC distribution systems and pairs seamlessly with Blue Sea distribution panels, battery switches, and monitoring gauges—a complete ecosystem approach that ensures compatibility and reduces troubleshooting time when building or upgrading a vessel's electrical infrastructure.
