Out of stock
SKU: CW75460
UPC: 632850332408
MPN: 55055-BP

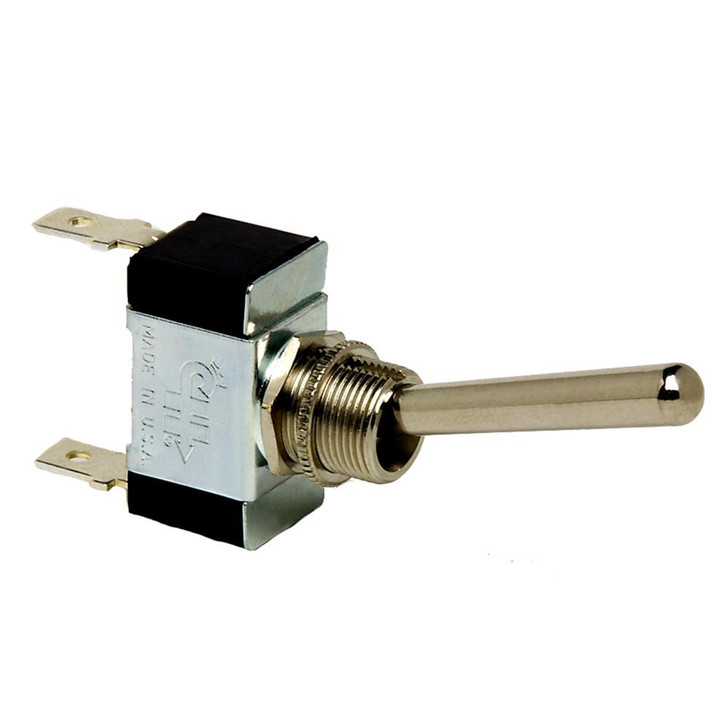

The Cole Hersee 55055-BP is a heavy-duty long-handle toggle switch built for on-off control in commercial vehicles, marine rigs, and off-road builds. It runs a single-pole single-throw circuit with two blade terminals, handling 25A at 12VDC, 15A at 24VDC, and 10A at 36VDC. The 1.5-inch nickel-plated brass handle gives you a positive grip even with gloves or in tight panel spaces. Anyone wiring up lighting, pumps, accessories, or auxiliary circuits will recognize this as a dependable, no-frills control switch from a brand that has been making vehicle electrical components since 1924. It belongs in the same parts bin as your fuse blocks and terminals.
Construction is what sets this switch apart from cheaper imports. The housing is phenolic with a plated steel cap, and the internal contacts are silver for low resistance and long service life under repeated cycling. Mounting hardware is nickel-plated brass, which resists corrosion in damp and salt-air conditions. The mounting stem uses a 15/32-inch thread measuring 15/32 inch (11.9mm) long, fits a 15/32-inch (11.90mm) panel hole, and seats on panels up to 9/32 inch (7.1mm) thick. Two blade-style terminals make for fast, tool-free connections to standard spade connectors. The switch is produced in a quality-certified manufacturing facility, and distributor specs are consistent on the single-pole single-throw on-off configuration. Power ratings cover 12V, 24V, and 36V DC systems.
Reach for this switch when you need straightforward on-off control of a single circuit — driving lights, a bilge pump, a fan, or an auxiliary feed. The long handle works well on dashboards, control panels, and consoles where you want a switch you can find and flip by feel. Pair it with properly rated wire and the right fuse protection upstream to keep the circuit safe. Browse our switches and accessories for boots and guards, our terminals for blade connectors, and the broader electrical department for fuse blocks and wire to finish the job.
It is a single-pole single-throw on-off switch with two blade terminals. Some listings incorrectly label it as double-pole, but distributor specs consistently confirm the single-pole single-throw configuration. It controls one circuit with a simple on-off action.
The switch is rated for 25A at 12VDC, 15A at 24VDC, and 10A at 36VDC. Match your circuit load and upstream fuse to those ratings, and the silver contacts will give you long service life under repeated switching.
It mounts in a 15/32-inch (11.90mm) panel hole using its 15/32-inch threaded stem, which is 15/32 inch (11.9mm) long. The switch fits panels up to 9/32 inch (7.1mm) thick, which covers most dash and console panels.
It uses two blade-style terminals that accept standard spade connectors, so you can crimp on connectors and slide them into place without soldering. Use correctly sized terminals and wire rated for your current draw.
Yes. The nickel-plated brass hardware and handle resist corrosion in damp and salt-air conditions, which is why this switch is common on boats, trucks, and off-road vehicles operating in harsh environments.
