Perf. Piston Ring Set V8 4.020 Bore 1.2x1.2x3.0

The NPR Performance Piston Ring Set V8 4.020 Bore 1.2x1.2x3.0 is engineered for serious engine builders and mechanics tackling high-performance V8 builds, rebuilds, and stroker applications. Whether you're assembling a naturally aspirated performance engine, preparing a platform for forced induction, or restoring a classic big-block, this ring set delivers the precision fit and seal integrity that separates a bulletproof engine from an unreliable one. NPR piston rings are purpose-built for demanding applications where ring blow-by, blow-past, and oil consumption can ruin thousands of dollars in machine work and parts investment.

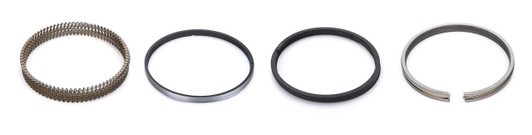

This ring set features a 1.2mm top ring, 1.2mm second ring, and 3.0mm oil ring configuration—a modern profile optimized for 4.020-inch bore engines to maximize combustion pressure containment while minimizing friction and parasitic drag. The 1.2x1.2x3.0 stack is thinner than traditional 1.5x1.5x3.0 designs, reducing reciprocating weight and allowing faster ring response, critical for high-RPM stability and consistent blowby control. NPR rings are manufactured to exacting tolerances and use premium steel alloys with specialized coatings to ensure rapid seat-in during the first few heat cycles, eliminating the extended break-in periods common with inferior aftermarket alternatives.

This ring set is ideal for 4.020-bore V8 applications including LS-based stroker builds, traditional small-block Chevrolet platforms, and aftermarket short-block assemblies where bore size matches specification. Proper installation requires honing to 4.020-inch nominal with finish between 20–40 Ra microinches and correct ring end-gap clearance per NPR's installation guide—typically 0.004 to 0.006 inches for the top ring. Use only OEM or quality aftermarket pistons with ring grooves engineered for 1.2x1.2x3.0 stack heights; verify piston and rod specifications before assembly to avoid catastrophic failure and ensure warranty coverage.
