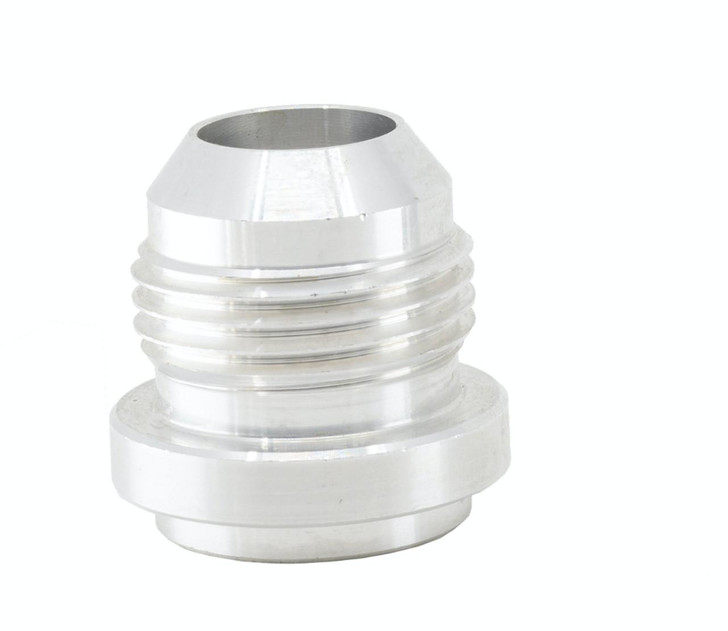

Compact 20AN Male Weld- On Fitting

The Compact 20AN Male Weld-On Fitting from REDHORSE PERFORMANCE is a precision fluid-line component engineered for high-pressure hydraulic and fuel systems in tactical, law enforcement, and military vehicles. This weld-on male adapter connects directly to welded bungs or ports, eliminating the need for external port bosses and reducing overall system complexity. Whether you're building a custom fuel system for an armored personnel carrier, hydraulic brake line assembly for tactical operations, or emergency response vehicle infrastructure, this fitting delivers the reliability demanded in mission-critical applications where fluid containment and system integrity cannot fail.

Designed to AN20 (JIC) standards, the compact male weld-on fitting accommodates a 20 AN hose and provides a sealed connection rated for sustained high-pressure service. The weld-on design allows direct integration into custom manifold blocks or hardline terminations without requiring additional fittings or adapters, reducing leak points and weight. At just 0.155 lbs with minimal envelope dimensions (2.8 x 1.4 x 3.8 inches), this component is ideal for weight-sensitive platforms where every ounce counts. REDHORSE PERFORMANCE's precision manufacturing ensures concentricity and thread accuracy that meets aerospace and military fluid-power specifications, guaranteeing reliable seat geometry and zero-leakage performance under extreme pressure cycling.

Professionals building custom hydraulic or fuel systems—including military vehicle maintainers, tactical equipment manufacturers, and emergency response engineers—rely on AN-series weld-on fittings for systems where flexibility and modular design are essential. Installation requires proper TIG or MIG welding into a boss or manifold bung; thermal stress testing and pressure verification are recommended post-installation. This fitting is compatible with standard 20 AN hose assemblies and AN20 male JIC threads, making it a direct replacement or upgrade for systems currently using threaded port solutions. For applications demanding compact footprint, welded integration, and zero-compromise pressure integrity, the Compact 20AN Male Weld-On Fitting is the proven solution.
