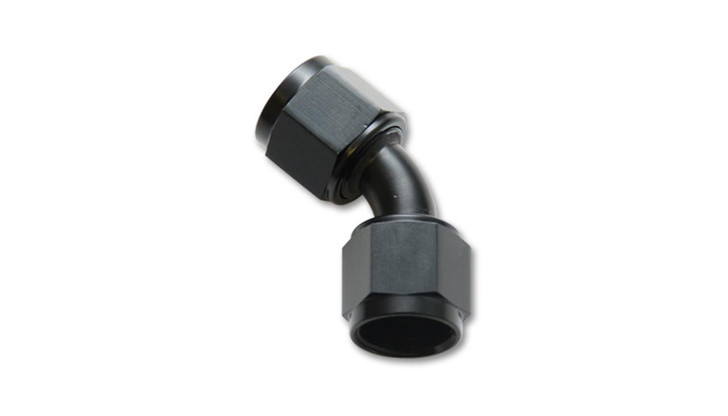

Female Union Adapter 45 46 Degree -20AN

The Female Union Adapter 45 46 Degree -20AN (SKU VIB10717) is a precision hydraulic and pneumatic fitting designed for high-pressure fluid systems requiring angled connections. This adapter serves as an essential component in custom hydraulic lines, fuel systems, and air brake assemblies where space constraints or routing requirements demand a compact 45-degree angle connection. Built for demanding applications in automotive, industrial, and specialty equipment installations, this fitting eliminates the need for multiple components and reduces potential leak points in critical systems.

Manufactured from aluminum and finished in black anodize, the Female Union Adapter features robust corrosion resistance suitable for both indoor and outdoor environments. The dual female -20AN ports provide ISO 6149 JIC thread compatibility, enabling secure connections with standard -20AN male fittings without adapters or reducers. The 45-degree geometry is precision-engineered to maintain structural integrity under rated pressure while minimizing turbulence in fluid dynamics—critical for maintaining system efficiency and component longevity in high-flow applications.

This adapter is ideal for technicians and engineers assembling custom brake lines, fuel delivery systems, or pneumatic control circuits where two female connections at a 45-degree angle are required. The lightweight aluminum construction (0.33 lbs) simplifies installation without sacrificing durability, while black anodizing provides superior abrasion resistance in engine bays and industrial settings. Compatible with any -20AN male fitting, this single unit functions as a true union adapter, allowing quick-disconnect maintenance and flexible hose routing around engine components or frame obstacles.
