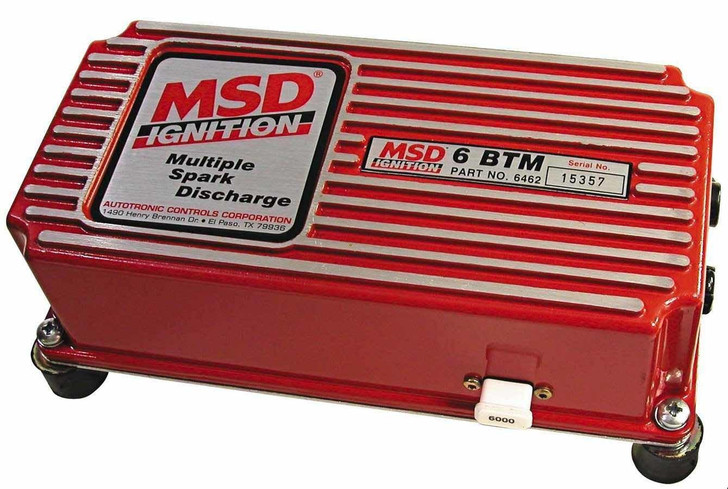

6btm Boost Timing Master

The MSD 6BTM Boost Timing Master is a capacitive-discharge ignition box engineered for high-performance carbureted and fuel-injected engines requiring precise timing control under boost conditions. This analog timing control system delivers 45,000 volts of spark energy with multi-spark capability, providing the consistent ignition needed in forced-induction applications where standard ignition systems fall short.

The boost retard dial allows real-time adjustment of timing based on manifold pressure, a critical feature for turbocharged and supercharged engines where boost levels change rapidly during acceleration. The soft-touch rev limiter protects the engine by preventing over-rpm conditions without harsh fuel cuts that can destabilize combustion. Multi-spark ignition ensures complete fuel burn across the combustion chamber, improving throttle response and reducing misfires at high load. The 45,000-volt output maintains spark strength even in high-compression, high-boost scenarios where electrode gap and combustion chamber pressure demand maximum spark energy.

This ignition box is designed for dedicated performance builders, bracket racers, and forced-induction enthusiasts who require tunable ignition timing rather than fixed advance curves. The boost retard capability makes it particularly valuable for turbocharged and supercharged engines running variable boost levels, where a one-size-fits-all timing curve cannot accommodate the transition from low-boost cruising to full-boost acceleration. Installation in a performance or race vehicle requires integration with a compatible distributor and wiring harness.

MSD Ignition is recognized in the performance automotive market for CD ignition systems that prioritize spark reliability under extreme engine conditions. The 6BTM model represents a mid-range timing-control solution, positioned between fixed-output boxes and fully programmable engine computers for builders who need boost compensation without complex ECU tuning.
