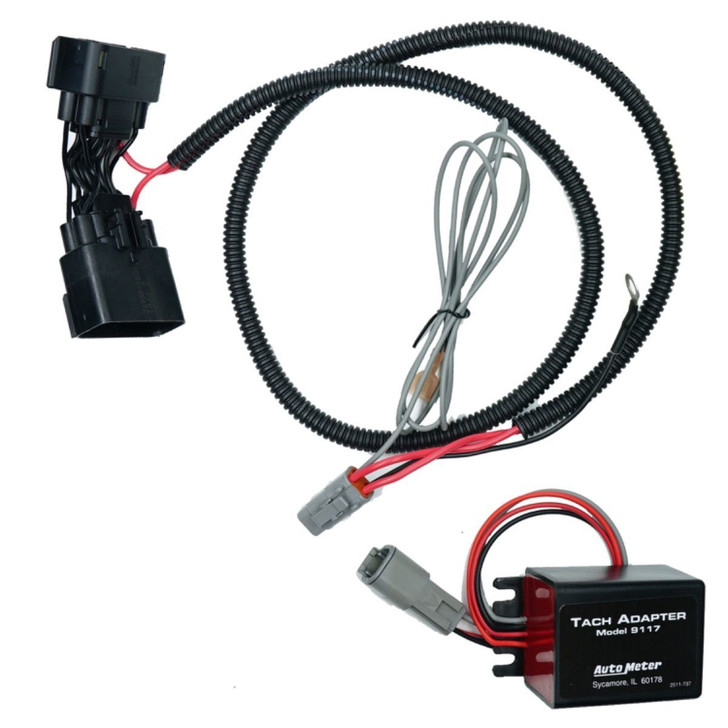

Ford Tach Adapter Harness Kit 09-22

The AutoMeter Ford Tach Adapter Harness Kit 09-22 is a purpose-engineered wiring harness solution designed specifically for installing aftermarket tachometers in Ford vehicles manufactured from 2009 through 2022. This kit eliminates the guesswork and trial-and-error splicing often required when integrating performance gauges into modern Ford electrical systems, providing direct plug-and-play connectivity to the vehicle's ignition and engine sensor circuits.

Installing an aftermarket tachometer in newer Ford models requires precision wiring to the tachometer signal, ignition power, and ground circuits—connections that vary significantly across engine configurations and model years. The AutoMeter adapter harness (MPN 9126) simplifies this process by providing factory-correct terminal connections that match Ford's OEM wiring color codes and pin configurations. This compatibility eliminates the need to probe factory harnesses or refer to complex wiring diagrams, reducing installation time substantially and minimizing the risk of electrical damage to the vehicle's engine control module or gauge cluster.

This adapter harness is ideal for owners upgrading Ford performance instrumentation, whether for engine monitoring during tuning, track use, or enhanced diagnostics. It serves as a critical bridge between modern Ford electrical architecture and standalone gauge systems, ensuring reliable tachometer operation without triggering fault codes or electrical conflicts. The compact package design (6.5 x 5.5 x 6.5 inches) fits cleanly behind the dashboard or steering column area typical in Ford instrument installations.

AutoMeter is recognized in the performance automotive community for producing OEM-quality adapter harnesses that respect manufacturer specifications. When paired with an AutoMeter tachometer, this kit ensures seamless integration and verified signal accuracy—essential for users who rely on precise RPM data during high-performance driving or engine development work.
