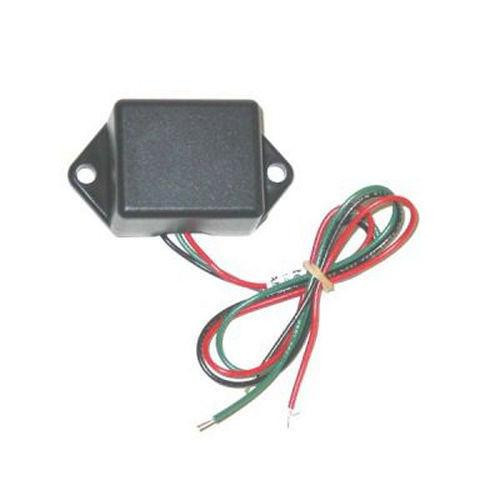

LT-1 Vats Module

The LT-1 VATS Module from Painless Wiring is a precision anti-theft bypass device engineered for GM LT-series engines in 1992–1997 model year vehicles. VATS (Vehicle Anti-Theft System) immobilizers are factory security features that prevent engine start unless the correct ignition key is used, making them essential for early 1990s GM muscle cars and performance builds. If you're restoring, modifying, or troubleshooting a classic GM LT engine swap, this module addresses common ignition compatibility issues when integrating non-original electrical harnesses or aftermarket ignition systems.

This bypass module works by defeating the VATS security protocol at the engine control unit, allowing engine start without the original VATS-coded key or resistor pellet authentication. The compact design—measuring just 2.75 x 1.4 x 4.05 inches and weighing only 0.1 lbs—fits cleanly into underdash wiring harnesses without requiring bulky external relocation. Installation involves intercepting the VATS signal line in your ignition circuit; the module then emulates the correct security handshake between the key and PCM, eliminating the need to retain factory anti-theft architecture during a harness upgrade or engine transplant.

Mechanics and enthusiasts performing LT engine swaps, harness simplification, or late-model ignition conversions on 1992–1997 GM vehicles rely on this module to resolve start-up issues without sacrificing drivability. Whether you're upgrading from an aging factory harness to Painless Wiring's modern systems or integrating an LT1/LT4 into a custom chassis, the LT-1 VATS Module ensures seamless PCM communication and reliable engine start. Proper installation requires basic electrical knowledge and a wiring diagram specific to your donor vehicle; consult your harness documentation or a qualified technician to confirm correct signal-line routing for your application.
