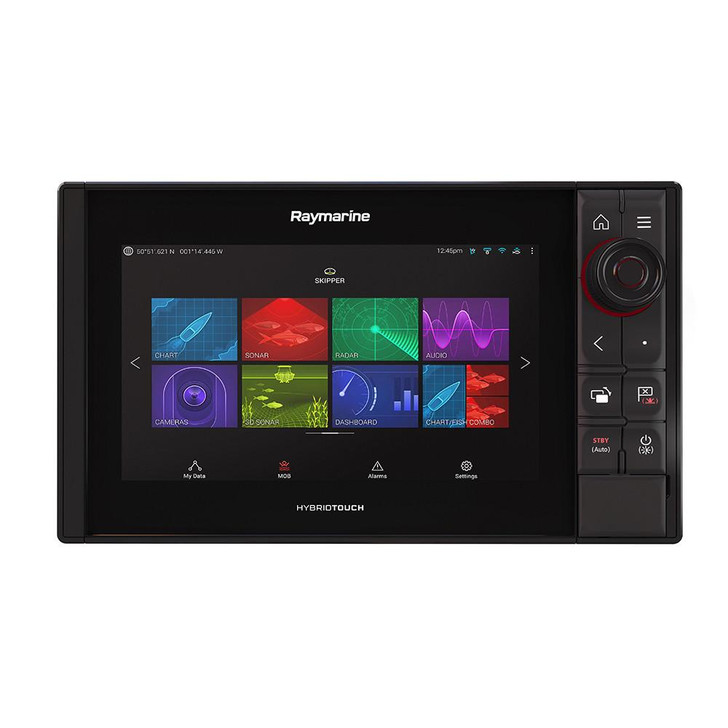

The Raymarine Axiom Pro 9 S is a 9-inch multifunction display built for boaters who want navigation and fishfinding in one helm unit. It runs the LightHouse 3 operating system on a quad-core processor, with a built-in single-channel High Chirp sonar rated at 1kW for depth and bottom imaging. The HybridTouch interface combines a multi-touch screen with physical buttons and a rotary knob, so you can run it confidently in rough water or with wet hands. Anglers and cruisers shopping our chartplotter selection will recognize this as a serious all-in-one helm display.
The display is a super-bright in-plane switching panel with optical bonding, which cuts glare and improves viewing angles in direct sun. A built-in satellite receiver tracks Gps, Glonass, and Beidou constellations at 10Hz for fast, accurate position fixes. Connectivity covers two NMEA0183 ports, NMEA2000, and RayNet Ethernet, plus two front-mounted MicroSDXC card slots for charts and data. One analog video input handles a single camera, with support for up to 10 network cameras. The unit carries IPX6/IPX7 waterproof ratings per Raymarine specifications. It expands to work with CP470 and CP570 sonar modules up to 2kW, Quantum radars, FLIR thermal cameras, and Evolution autopilot systems.
This unit fits anyone building a connected helm — offshore anglers who need 1kW sonar at the dash, or cruisers who want chartplotting, radar overlay, and autopilot control from a single screen. The base unit ships without a transducer, so you'll need to match one to your hull and target depth. Pair it with a compatible transducer and explore add-on radar units or autopilot systems to round out the network. Questions on compatibility or wiring? Reach out to us before you order.
No. The base unit ships without a transducer. You'll need to select one matched to your hull type and the depths you fish. The built-in sonar is rated at 1kW, and the unit also supports external CP470 and CP570 modules up to 2kW for deeper or more demanding setups.
The Axiom Pro 9 S has a built-in receiver that tracks Gps, Glonass, and Beidou constellations at a 10Hz update rate. That combination delivers fast, accurate position fixes for both navigation and marking fishing spots on the chart.
Yes. It works with Quantum radar units, Evolution autopilot systems, and FLIR thermal cameras over its RayNet Ethernet and NMEA2000 connections. This lets you build a full networked helm controlled from the single 9-inch display.
It carries IPX6 and IPX7 waterproof ratings per Raymarine specifications, meaning it withstands heavy spray and brief immersion. The optically bonded in-plane switching display also resists glare and fogging, holding up well at an exposed helm.
The unit runs LightHouse 3 on a quad-core processor. That hardware handles chart redraws, sonar imaging, and multiple data windows quickly, and supports the HybridTouch interface that combines touchscreen control with physical buttons and a rotary knob.
