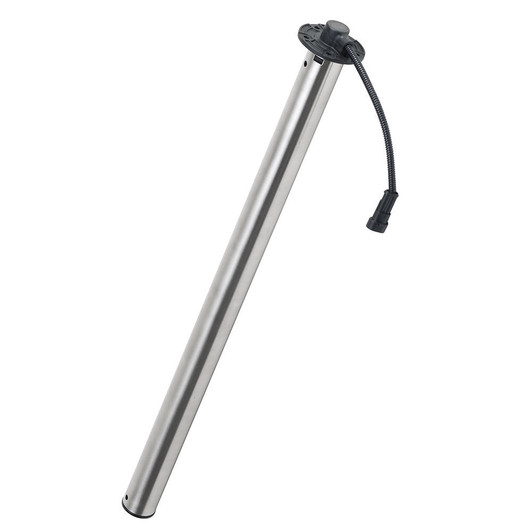

Veratron Deep-Pipe Level Sender - 650mm - 90 to 4 OHM

The Veratron Deep-Pipe Level Sender – 650mm – 90 to 4 OHM is a precision fuel tank measurement component designed for accurate, real-time liquid level monitoring in vehicles, marine vessels, and custom automotive builds. This sender addresses a critical need in fuel system diagnostics: translating physical fuel volume into electrical signal data that your dashboard gauge can display reliably. Whether you're building a custom fuel system, restoring a classic vehicle, or upgrading to aftermarket tank instrumentation, this sender provides the mechanical and electrical foundation for dependable fuel level indication without the guesswork.

Inside the sender's 38 mm diameter vertical tube sits a calibrated float that rises and falls with fuel level, mechanically linked to a variable resistor that outputs a proportional electrical signal across a 90 to 4 OHM range—empty to full. The tube's vertical orientation and baffle holes at top and bottom act as fuel dampers, reducing electrical noise from fuel slosh and sump turbulence that would otherwise cause gauge needle flutter during acceleration, braking, or rough terrain. The 650 mm length is ideal for deep-well tank applications, allowing the sender to reach the lowest fuel zones while maintaining sufficient clearance from tank bottom sediment. This design philosophy—mechanical simplicity combined with electrical stability—is what separates precision OEM-grade senders from budget alternatives that deliver erratic gauge readings.

Mechanics and fabricators working on custom fuel systems, vintage restorations, or performance builds will find this sender compatible with any fuel gauge cluster designed to accept a 90–4 OHM input signal. The 1 lb weight minimizes impact on fuel slosh dynamics, and the sender's modular design allows straightforward installation in vertical tank wells with standard mounting provisions. Verify your gauge's OHM range and sender connector type before ordering to ensure seamless integration; Veratron senders are engineered to ISO marine and automotive standards, making them reliable for both fresh-fuel and ethanol-blend compatibility. Installation in fuel tanks requires standard sender removal tools and careful handling to avoid float damage during fitment.
