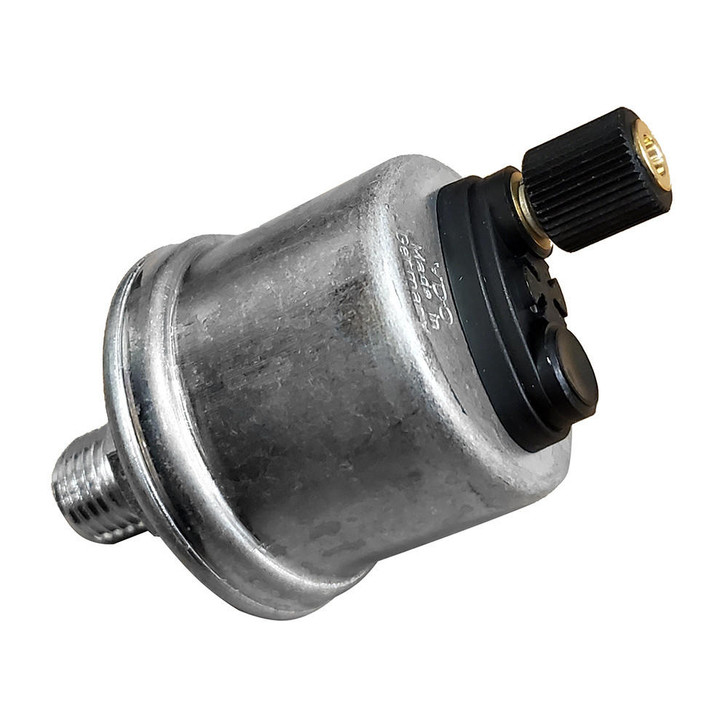

Veratron Pressure Sender 10 Bar w/M14 x 1.5 Thread 10 to 184OHM

The Veratron Pressure Sender 10 Bar with M14 x 1.5 Thread is a precision fluid monitoring instrument designed for marine, automotive, and industrial hydraulic systems. This sender unit converts fluid pressure into a proportional electrical signal, enabling real-time gauge displays and automated pressure monitoring across 6–24V systems. Weighing just 0.25 lbs with compact dimensions of 2 x 2 x 3 inches, it integrates seamlessly into tight engine compartments and equipment enclosures where space and reliability are critical.

This pressure sender operates on a variable resistor principle, delivering output impedance ranging from 10 to 184 ohms as pressure increases from zero to 10 bar (approximately 145 psi). The M14 x 1.5 metric thread ensures compatibility with standard European and metric-equipped pressure ports, while the knurled nut connection provides secure, hand-tightened assembly without requiring specialized tools. Ground configuration is standard, simplifying wiring harness integration into existing dash-mounted gauges or electronic control units. The 10-bar maximum rating makes this sender ideal for low-to-moderate pressure applications such as engine oil monitoring, fuel pressure tracking, and general hydraulic system supervision.

Marine technicians, diesel engine builders, and restoration specialists frequently specify Veratron senders for reliability in salt-air and vibration-prone environments. Installation requires only a clean, compatible pressure port and a simple two-wire circuit to ground; no calibration is necessary upon installation. Before purchasing, verify that your gauge or control module accepts 10–184 ohm input resistance and operates within the 6–24V supply range. Replacement or upgrade of legacy pressure monitoring systems benefits significantly from this sender's industry-standard thread sizing and proven durability in commercial and recreational applications.
