SKU: LOW00016002001
UPC: 9420064129829
MPN: 000-16002-001

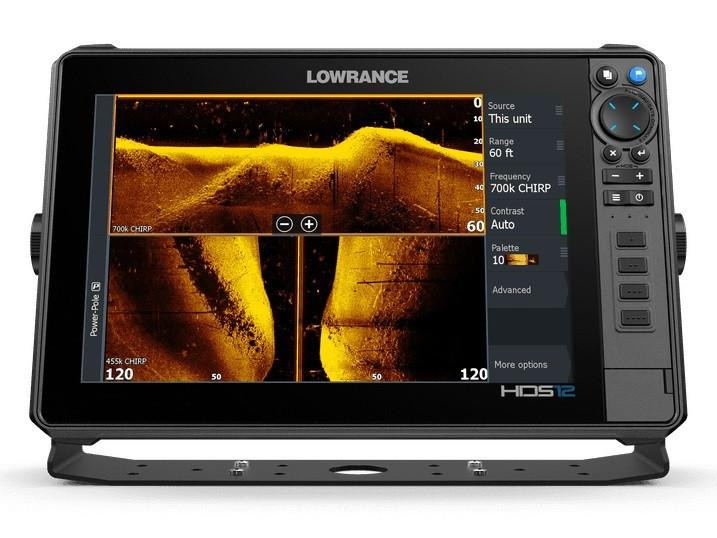

The Lowrance HDS 12 Pro is a 12-inch multifunction display built for anglers who want a big, bright screen and a sonar platform that can grow with the boat. This version ships preloaded with C-MAP DISCOVER charts covering 19,000-plus US lakes and 9,400-plus Canadian lakes, and it does not include a transducer, so you can pair it with the imaging package that fits your fishing. The SolarMAX HD IPS touchscreen runs 1280x720 at over 1200 nits, staying readable in direct sun and through polarized lenses. It suits everyone from weekend crappie fishermen to tournament anglers running a full networked helm.
Behind the glass, the HDS 12 Pro carries dual 1kW sonar with CHIRP and is ready for Active Imaging HD at 1.2MHz, ActiveTarget 2 Live Sonar, and FishReveal with SideScan and DownScan. It supports two ActiveTarget systems at once for multiple live views on screen. Power draw runs 3.6A maximum at 13VDC with full backlight and sonar active, down to 2.3A minimum, on a 12V supply rated from 10.8 to 17V with a 5A recommended fuse. Storage covers 8GB internal plus two microSD slots up to 32GB each. Connectivity includes NMEA 2000, Bluetooth 5.2, WiFi 802.11b/g/n, and two 100BASE-T Ethernet ports for radar, autopilot, and full bow-to-stern networking. Operating range is 5°F to 131°F.
Most buyers choose this no-transducer model because they already run a transom or thru-hull setup or plan to add live sonar separately. From here you can fold in a transom-mount transducer, expand the chart library through additional marine cartography, or tie the unit into a wider network with NMEA 2000 sensors. The display supports Power-Pole anchors, Ghost Trolling Motor 360 overlay, and Lowrance Outboard Pilot for autopilot control. For builders comparing helm options, our full lineup of GPS fishfinder chartplotters covers everything from compact combos to large-format displays.
No. This is the no-transducer configuration. You add the transducer separately, which lets you match the display to the imaging setup you want, whether that is a transom-mount unit, a thru-hull, or a live sonar system like ActiveTarget 2.
It ships with C-MAP DISCOVER OnBoard charts covering North America, including 1-foot contours on more than 19,000 US lakes and over 9,400 Canadian lakes. It also supports C-MAP Genesis Live for real-time mapping and accepts third-party charts via the two microSD slots.
The display carries dual 1kW CHIRP sonar and is ready for Active Imaging HD at 1.2MHz, ActiveTarget 2 Live Sonar, FishReveal, SideScan, and DownScan. It can run two ActiveTarget systems simultaneously for multiple live views, once you add the matching transducers.
Yes. It supports NMEA 2000, two 100BASE-T Ethernet ports, WiFi, and Bluetooth 5.2. That allows full bow-to-stern control, including radar, autopilot through Lowrance Outboard Pilot, Power-Pole anchors, and Ghost Trolling Motor 360 overlay.
The SolarMAX HD IPS touchscreen runs over 1200 nits at 1280x720 resolution with 80-degree viewing angles. That brightness keeps the screen readable in full sun and through polarized sunglasses, which matters on open-water helms.
