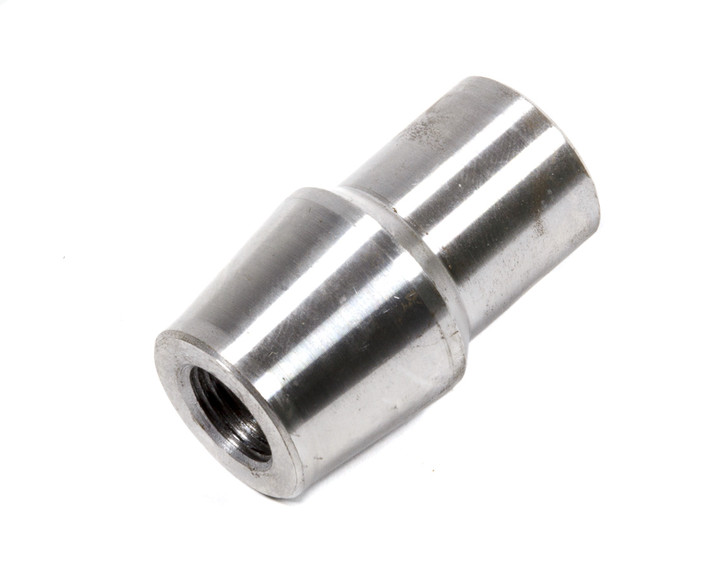

1/2-20 RH Tube End - 1in x .095in

The 1/2-20 RH Tube End - 1in x .095in is a precision weld-on threaded tube fitting designed for hydraulic systems, pneumatic assemblies, and industrial applications requiring robust fluid or gas transmission. This right-hand female threaded component serves technicians, mechanics, and fabricators who need reliable tube connections that withstand high-pressure environments and repetitive cycling. The tube end's specific geometry accommodates 1-inch outer diameter tubing with 0.095-inch wall thickness, making it an exact match for OEM-equivalent replacements and custom hydraulic builds.

Manufactured from chromoly steel in natural finish, this 1/2-20 RH tube end delivers superior strength-to-weight characteristics and excellent fatigue resistance under cyclic pressure loads. The right-hand 1/2-20 thread pitch (20 threads per inch) ensures secure engagement with compatible male fittings, while the weld-on design allows permanent, leak-proof integration into custom tube assemblies. Chromoly's inherent toughness prevents brittle failure and withstands thermal stress better than mild steel, critical for systems experiencing temperature fluctuations or mechanical shock. The natural finish provides a clean, corrosion-resistant surface suitable for both indoor industrial use and light outdoor exposure.

This tube end is ideal for fabricators assembling custom hydraulic cylinders, pneumatic lines, fuel delivery systems, and pressure-tested manifolds where code compliance and long-service life are non-negotiable. Installation requires TIG or MIG welding to the tube's end face, demanding proper joint preparation and qualified welding technique to prevent leakage or mechanical weakness. Technicians should verify pressure rating compatibility with the overall system design and confirm thread pitch alignment before assembly. The compact 2.85-inch length and lightweight 0.16-pound design integrate seamlessly into tight spaces without compromising structural integrity.
