Chamber Mold Kit

The DIAMOND RACING PRODUCTS Chamber Mold Kit (MPN 03-2000) is an engine builder's tool for casting an accurate impression of an existing combustion chamber. Rather than shipping a complete cylinder head out for measurement, builders use this kit to reproduce chamber geometry on the bench and send that record off for custom piston work. It's aimed at racers and machinists who need piston dome and dish profiles matched to a specific head. The result is a physical reference that captures chamber shape far more precisely than calculations alone. Builders working on high-compression combinations will find it sits naturally alongside the rest of their shop tools.

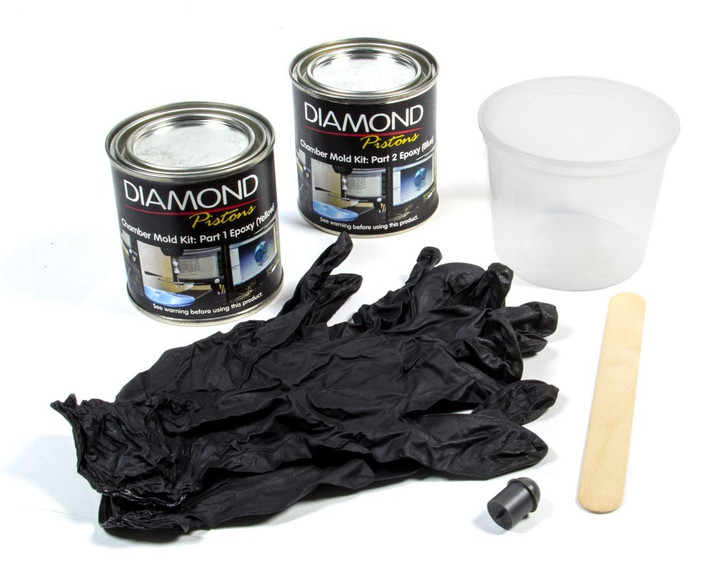

The kit centers on a two-part mold compound that you mix and pour into the chamber, where it sets into a dimensionally stable cast. Once cured, the cast pulls free and holds the full contour of the chamber, including valve reliefs and quench areas, so a piston supplier can machine a dome to match. Diamond Racing supplies this kit under SKU DIA03-2000, packaged at roughly 1.42 lbs. Because the cast records the actual machined surface rather than a nominal blueprint figure, it accounts for any port work, milling, or chamber reshaping already done to the head. That accuracy matters most when you are chasing a target compression ratio and need the piston to clear the valves at full lift. Keep a few dial indicators nearby for confirming clearances.

Reach for this kit when you are speccing custom pistons for a head that's already been worked, or when you need a repeatable record of chamber volume across a set of heads. It removes the back-and-forth of shipping heavy castings and gives the piston maker exactly what they need to cut a matched dome or dish. Mixing and pouring takes only a few minutes per chamber, and the finished cast stores easily for future reference. Pair it with our cylinder head CC kit for volume verification, or browse the rest of our engine-related tools to round out a precision build.
