SKU: RAT10003
MPN: 10003

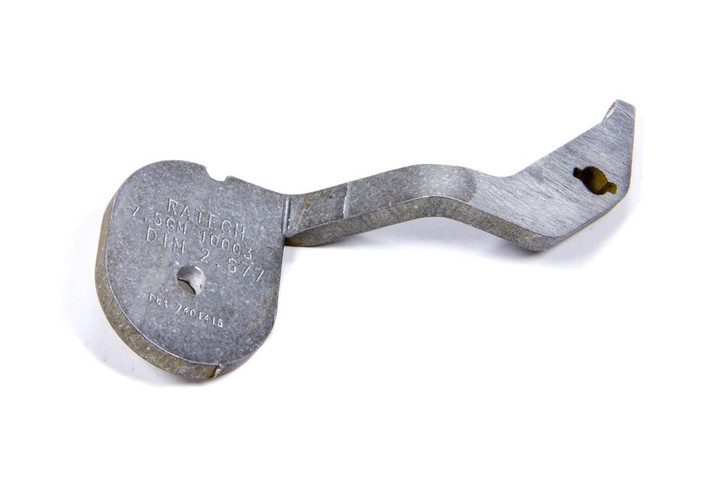

The RATECH Pinion Setting Tool GM 10BT 7.5/7.625 R/P is a precision instrument designed for technicians and gear enthusiasts who demand accuracy when assembling or servicing GM 10-bolt differentials. This tool addresses one of the most critical aspects of differential setup: establishing proper pinion depth to ensure correct gear mesh and backlash. Whether you're rebuilding a factory axle or upgrading to performance gearing, pinion depth directly affects ring gear contact pattern, noise, efficiency, and longevity.
The RATECH pinion setting tool eliminates guesswork from depth calculations. It works by establishing a consistent reference point on the differential case, allowing you to measure pinion height relative to the ring gear mounting surface with repeatable precision. Proper pinion depth ensures minimal runout and optimal contact across the full face of the ring gear teeth, preventing premature wear, gear noise, and power loss.
Weighing just 0.2 pounds and measuring 2.4 x 2.3 x 6.9 inches, this compact tool fits easily in your toolbox while delivering the accuracy required for professional-grade differential assembly. Mechanics, restoration shops, and performance builders working with GM 10-bolt axles will find this tool particularly beneficial when upgrading to higher performance gearing or rebuilding axles.
